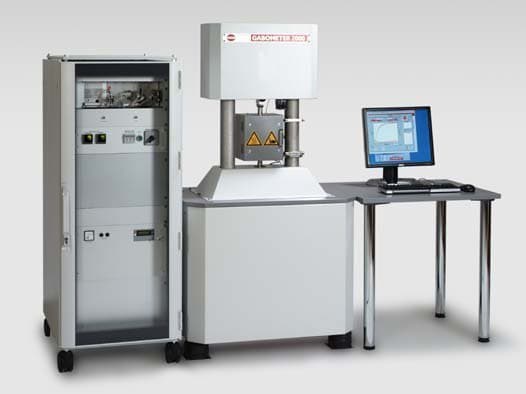

Accurate measurements of Heat Build-up or Blow out processes and the determination of the thermal set can be realised by our GABOMETER^® system – a development based on the established Goodrich Flexometer.

Both, force and elongation controlled tests can be carried out with this modern type of Flexometer. The GABOMETER^® is suitable to improve the thermal dissipation and the durability of semi-finished tire components, dampers or absorbers.

Additionally, the new generation provides the measurement of the material stiffness (E modulus, tan δ - option) and damping.

?

Request Information

Data Sheet

Brochure

?

• Heat build-up and blow out tests according to Goodrich (DIN 53 533, ASTM D 623, ISO 4666/3,ISO 4666/4, BS 903 part A50 and JIS K 6265)
• Goodrich flexometer tests

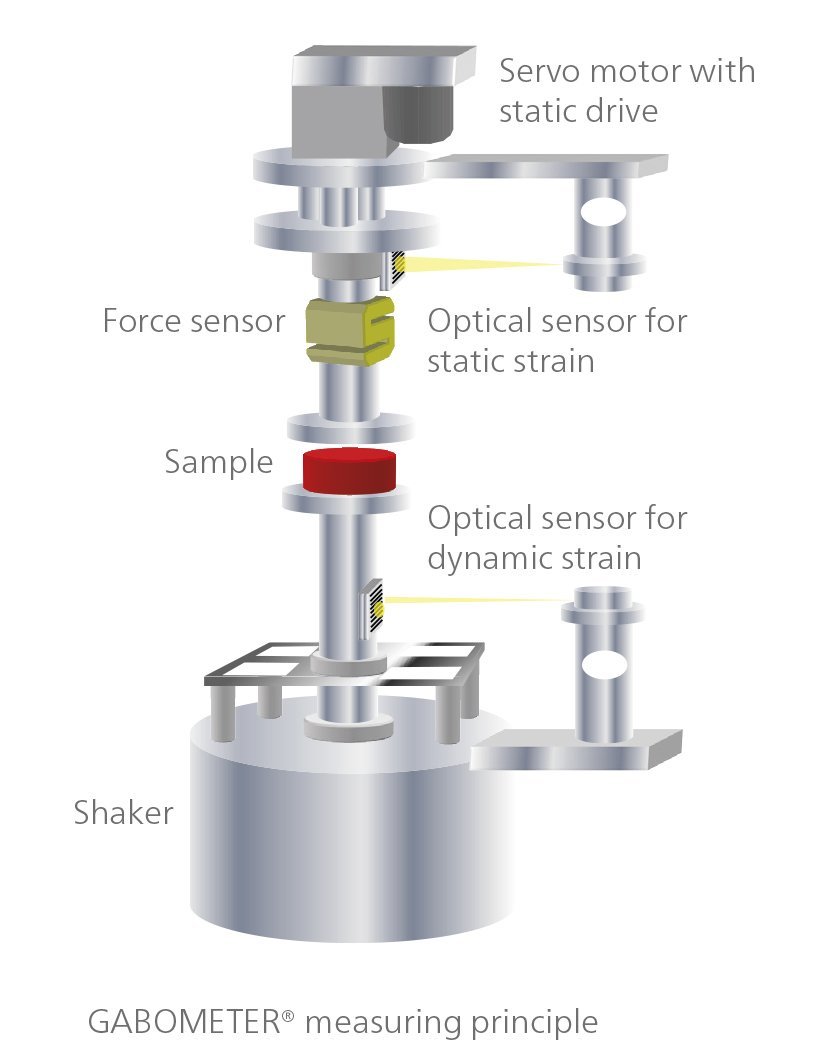

• Static: strain or stress controlled load mode available
• Dynamic: strain or stress controlled load mode available
• Wide frequency range (option)
• Wide temperature range (option)

?

• Automatic Sample Changer (ASC) for fully automatic testing (24h) (option)
• Simultaneous measurement of the visco-elastic properties (option)
• Visco-elastic properties in DMTS/DMA mode (option)
• Hysteresis analysis (option)
• Pulse load mode available (option)

?

?

?

?

Pair of insulated compression sample holders aimed for Flexometer tests equipped with a contact thermocouple for recording the sample temperature on the surface of the test specimen during Heat Build-up tests.

Recording of the sample “centre” temperature within the core of the test specimen during heat build-up tests with a needle type thermocouple (horizontal operation) manual mode (Option).

Automatic recording of the sample “centre” temperature within the core of the test specimen after heat build-up tests with a needle type thermocouple (vertical operation) driven by a pneumatic penetration system automatic mode (Option).
