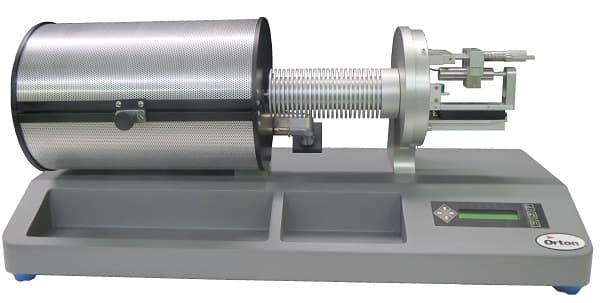

Máy đo độ giãn 1410 STD ORTON

Dilatometers  Model 1410 STD

General

Orton dilatometer Model 1410STD is a horizontal, digital dilatometer that measures the expansion or contraction of a single test specimen from room temperature to 1000°C with on-board, stand-alone, programmable process controller and linear motion measuring head assembly equipped with LVDT sensor.

Operated according to ASTM E-228, ASTM C-372, or ISO 7991

Includes

• Bench top instrument console
• 1000°C split tube furnace
• programmable process controller
• LVDT measuring head
• Fused quartz sample holder and probe rod
• type "S" thermocouple
• 1 (25.4mm) or 2" (50.8mm) calibration sample
• computer software
• Accessories and instruction manual. (Computer not included.)

Specifications

Model	DIL 1410 STD
Warranty	12 Months
Temperature Range	RT to 1,000°C
Furnace	Clam shell style, 8 inch heated zone
Thermocouple	Type "S" 2 wire
Sample Holder and Probe Rod	Fused Quartz
Sample Size (max)	50 mm long x 10 mm round or square
LVDT Displacement Range	±0.125 inch (±3.18 mm)
Displacement Resolution	0.0000003 inch or 0.3 micro-inch (0.00001 millimeter or 0.01 microns)
PLC Resolution for a 1 Sample	0.00003%
Reproducibility Range	± 0.004 Percent Linear Change
Contact Load	Adjustable - minimum 4 grams
Temperature Control	User Programmable, 20-segment, PID Controller with Melting Point Protection
Heating Rate	1 to 30°C/minuteProgrammable at 0.01°C increments
Power Requirements	120vac/10amp or 240vac/5amp 50/60Hz
Data Acquisition	On-board Process controller - data stored at 1°C increments, real-time data collection or data retrieval to computer
Data Analysis	Remote programming and analysis Software (Requires English Language Version of Windows OS)
Computer Interface	USB
Factory Calibration	high purity platinum
Calibration Sample	99.8 Alumina; Platinum available as Option
Water Cooled Bulkhead	Optional (water circulation system not included)
Measuring Head Cover	Optional
Controlled Atmosphere Option	Optional
Fused Silica Calibration Sample	Optional
Bench-top Footprint; Length x Depth x Height	31 x 12 x 14 (788 x 305 x 356 mm)
