General

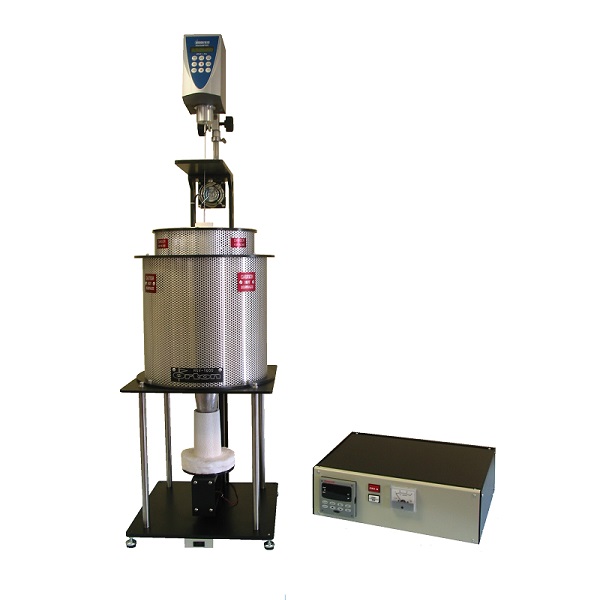

A laboratory bench-top system for measuring the viscosity of molten glass as a function of temperature from room temperature to 1700°C.

Operated according to ASTM C-965/A, ASTM C-1276

Includes

• 1700°C furnace
• programmable process controller
• Power Transformer
• Type "B" thermocouples
• Motorized sample lift pedestal
• and instruction manual.

Choice of Brookfield Viscometer Models (ranges):

• LV-DV2T: 1.5K to 2M cP
• RV-DV2T: 10K to 40M cP
• HA-DV2T: 25K to 80M cP
• HB-DV2T: 100K to 320M cP

Specifications

Model	RSV-1700
Warranty	12 Months
Test Method	Rotating Spindle
Range	1.5K - 320M cP
Atmosphere	Air
Temperature Range	RT to 1,700°C
Furnace	Tube style with MolyD elements
Sample Thermocouple	Type "B
Control Thermocouple	Type "B
Crucible/Spindle (not Included)	Platinum/Rhodium
Size (Crucible)	74 mm height 68 mm top diameter, 41mm bottom diameter200ml capacity
Size (Spindle)	292 mm length 8.7mm diameter
Sample Volume	125ml +/- 50ml
Sample Weight	400-500 grams
Power Requirements	20/-240vac/ 30amp, 50 or 60Hz
Power Control	4-20ma / SCR
Pedestal	1650C IFB
Pedestal Movement	Vertical, Motor driven lead-screw
Temperature Control	Honeywell UDC 3200 Process controller
Calibration Sample	100000cps Fluid (for Room Temp calibration)
SRM Calibration Sample	Optional
Computer Interface Software	Optional
Purge Gas Atmosphere	Optional
Bench-top FootprintLength x Depth x Height	16 x 16 x 58 (41 x 41 x 147 cm)
