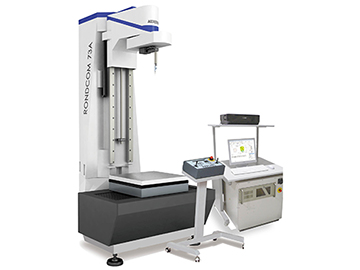

With a rotation speed of 4/min (twice as fast as existing instruments) and rotation accuracy guaranteed at 0.06μm (a long shaft measuring tool: 0.6μm) which is the highest in its class, the RONDCOM 73A dramatically increases measuring throughput.

RONDCOM 73A guarantees Z-axis straightness accuracy of 0.9μm/200mm or less which is the highest in its class.
Z-axis parallelism is 0.9μm/100mm or less which is also the highest in its class.

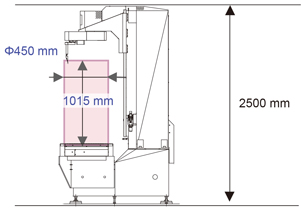

RONDCOM 73A achieved a 27% reduction of width and a 24% reduction of footprint X-axis stroke of 600 mm has been ensured while signifi cantly downsizing the instrument body. In addition, Y-axis stroke has been extended to 120 mm. Z-axis stroke of 1015 mm has been ensured although the instrument body is only 2500 mm high.

Provided as standard, the detector holder safety device identifies a collision between a workpiece and a detector.
An auto balancing mechanism is also provided on the R-axis, so there is no need to adjust a counterweight to acco mmodate different measuring diameters.

At 265 mm, the R-axis feed range is the widest in its class (equivalent to our existing instruments). This eliminates the need to change detector positions to acco mmodate different measuring diameters.

Adaptive to Higher Accuracy Requirements (Optional)

Pneumatic Vibration Isolation Stand Available (Optional)

Adaptive to 400 kg Loading (Optional)
