World's highest rotation accuracy of 0.02+3.2H/10000 μm
contributes to production of highly accurate parts.

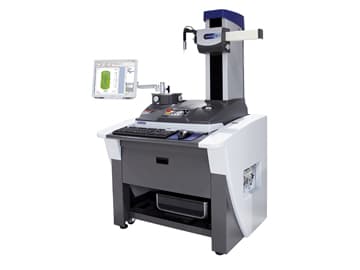

Typical machine arrangement is to equip a roundness measuring instrument to evaluate the roundness and a surface texture measuring instrument to evaluate the roughness. Respective instruments conduct functions from alignment through measurement/ analysis specialized in each instrument purpose. RONDCOM NEX Rs plays a role of both measurements of roundness and roughness, and the distinction contributes to the extreme reduction of installation space and cost, and the maximization of working efficiency.

The platform of a roundness measuring instrument basis allows utilizing the automatic centering function for the roundness measurement, and the function saves time for positioning the ridgeline for roughness measurement in axes.
Furthermore, the full automatic measurement feature supported by CNC specification enables the consecutive roughness measurements on circumference, on edge face, and so on.
The instrument functions as a common roughness measuring instrument by placing a workpiece on the tilt cross table, R-axis playing a role of X-axis in a roughness measuring instrument.

Achieve high accuracy roughness measurement in Z-axis, R-axis and T-axis.

Measure the periodic and fine twist structure on a cylindrical shaft. Visualization of twist structure enables easy analysis.

Automatic control feature allows controlling the detector position at inner/outer, upper/lower and taper face. Holding both manual and CNC holders eliminates the necessity of a holder for maintenance purpose and suppresses the cost.
