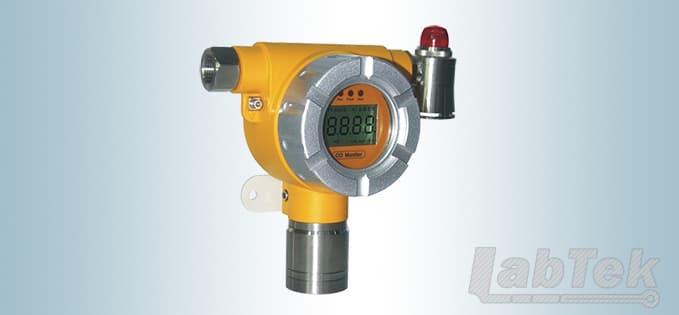

Máy dò khí độc hại trong môi trường FBI

Model Options

Product model	GT-1121	GT-1020-DF	GT-1020-TF	GT-1040	GT-1020 /1030 /1031-IR	GT-1030 /1031-TF	GT-1030 /1031-TS	GT-2121
Key properties	Two-wi- re,int- rin- sically safe, LCD	Two-wi- re,ex- plosion proof, LCD	Three-wire, explosion proof, LCD	Three-wire, explosion proof, LCD	Three-wire, explosion proof, LCD	Three-wire, explosion proof, LCD	Three-wire, explosion proof, LCD	Single gas, diffusion
Measuring principle	Electr- ochemical	Electr- ochemical	Electr- ochemical	Photoi- onization	Infrared	Catalytic combustion	Catalytic combustion	Elect- rochemical
Product picture
Measuring gas	CO, H2S, O2 etc.	CO, H2S, O2etc.	CO, H2S, O2 etc.	Morethan 300 VOC gases including benzene and toluene	Combustible hydrocarbon gas including CO2 and methane	Combustible gas	Combustible gas	CO,H2S, O2 etc.
Response time (T90)	≤15s (CO, H2S etc.) ≤ 10s (O2 etc.)	≤15s (CO, H2S etc.) ≤ 10s (O2 etc.)	≤15s (CO, H2S etc. ≤ 10s (O2 etc.)	≤10s	≤15S	≤15S	≤30S	≤15S
Temperature	(-20~50)℃, up to (-40~70)℃ under short- time oper- ation con- dition	(-20~50)℃, up to (-40~70)℃ under short-time operation condition	(-20~50)℃, up to (-40~70)℃ under short-time operation condition	(-40~60)℃	(-40~70)℃	(-40~70)℃	(-40~70)℃	(-20~50)℃ (10~95)% RH
Display mode	LCD	LCD	LCD, with backlight	LCD, with backlight	LCD, with backlight	LCD, with backlight	LCD	LCD, with backlight
Operating mode	Two-wayin -frared remote control with di- splay	Two-way- infrared remote control with display	Two-way- infrared remote control with display	Two-way- infrared remote control with display	Two-way- infrared remote control with d isplay	Two-way- infrared remote control with display	Infrared touch	Diffusion type
Signaloutput	Analog nowrap	(4~20)mA	(4~20)mA	(4~20)mA	(4~20)mA	(4~20)mA	(4~20)mA	(4~20)mA
Digitaloutput	None	None	2-channel relay	2-channel relay	2-channel relay	2-channel relay	2-channel relay
Elec- trical proper- ties	Electrical interface	G1/2” or NPT3/4”, etc.	G1/2” or NPT3/4”, etc.	G1/2” or NPT3/4”, etc.	G1/2” or NPT3/4”, etc.	G1/2” or NPT3/4”, etc.	G1/2” or NPT3/4”, etc.	G1/2” or NPT3/4”, etc.
Maximum power consum- ption	<0.5W	<0.5W	<2.5W	<2.5W	<3.5W	<3.5W	<3.5W	3V lithium battery, life time around 5500 hours
Powersupply	(10~30 )VDC	(10~30) VDC	(10~30) VDC	(10~30) VDC	(10~30) VDC	（10~30） VDC	（10~30） VDC
Certifi- cation	Prote-ctio-nclass	IP66	IP66	IP66	IP66	IP66	IP66	IP66	IP66/ IP67
Explosion -proof grade	Exia‖C T6	Exd‖C T6	Exd‖C T6	Exd‖C T6	Exd‖C T6	Exd‖C T6	Exd‖C T6	Exia‖C T4
Weight	About 1.5KG	About 1.5KG	About 1.5KG	About 1.5KG	About 1.5KG	About 1.5KG	About 1.5KG	About 100g

Detector Accessories

 Detector Controller

The detector controller is used to supply power and process data for the gas detector. It is based on two-wire and three-wire systems.

Product model: GC-1010-AA/AE, GC-1010-CA, and GC-1020-AA/AE.

Note: The system consists of a detector and a controller. The detector is responsible for sensing toxic and harmful gas in the environment, and sending these signals to the controller or industrial computer in the safety zone through (4~20)mA output.

Explosion-proof wiring box

The explosion-proof box is used for all kinds of electrical connection industrial site with explosion proof requirement. The box is also corrosion prevented and easy to use.

TECHNICAL   DATA
Explosion   proof	Exd   II B T6, Exd II C T6
Protection class	IP65/   IP66
Rated   current	10/20/32/63/100A
Electrical   interface	G1/2,   G3/4, G1

RC-1000

Our RC-1000 overcomes limitations from traditional potentiometer, magnetic bar and one-way infrared remote control. It can be used to remotely acquire data and set parameters. With the ability to restore setting parameters, one RC-100 can be used for parameter setting and calibration for several detectors.

TECHNICAL DATA
LCD	128*128 STN LCD
Number of button	8
Battery	Two AAA batteries
Explosion-proof type	Intrinsically safe Exia IIC T4
Power consumption	<100mW
Operating humidity	(10-95)%   RH (non-condensing)
Cone angle of infrared receiver	50°
Cone angle of infrared emitter	50°
Dimension	127.7mm×48mm×26mm (H × W × T)

SG-100

SG-100 can be integratively installed on GT detector to give audible alarms and emits red flash light when gas concentration detected exceeds. The locknut design ensures alarm can be observed at any direction. It can be used in combination with all other GT series detectors except two-wire ones.

TECHNICAL   DATA
Operating   voltage	(15~30)   V DC
Operating   current	<30mA
Alarm   sound	>85dB
Operating   temperature	(-40~70)℃
Alarm   frequency	0.3Hz/3Hz
Explosion-proof	ExdibIICT6
Size	M20X1.5
Dimension	43mm×83mm

Controller Options

Product   Model	GC-1010-AA/AE	GC-1010-CA	GC-1020-AA/AE
Key   properties	10-channel,   integrated, RS485 / Ethernet	2-channel,   integrated, RS485	10-channel,   integrated, RS485 / Ethernet
Product   picture
Material	Carbon   steel sheet-metal shell	Carbon   steel sheet-metal shell	Carbon steel   sheet-metal shell
Temperature   / humidity	(-10~50)℃  (10~90)%RH	(-10~50)℃  (10~90)%RH	(-10~50)℃  (10~90)%RH
Alarm   mode	Audible   alarm, can be connected to audible and visual alarm	Audible   alarm, can be connected to audible and visual alarm	Audible   and visual alarming
Signal   input	10-channel   (4-20)mA	10-channel   (4-20)mA	32-channel /   64-channel bus (compatible with 2-channel (4-20)mA)
Signal   output	23-channel   relay (2 for each channel; system-level: alarm, combined alarm); RS485 or   Ethernet (optional)	7-channel   relay (2 for each channel, system-level: I alarm and II alarm); 2-circuit   (4-20)mA or RS485 (optional)	4-channel   relay (Level I and II alarm, fault, backup); RS485, Ethernet interface, GPRS   module (optional)
Power   supply	220V   AC±20%, 50HZ (with battery: 18V/7AH)	220V   AC±20%, 50HZ ( optional with battery ): 18V/3.2AH)	20V   AC±20%, 50HZ
Power   consumption	<60W	<20W	<35W
Display   mode	System-level   204*128 lattice, with backlight LCD, 10 groups of channel-level   high-brightness Nixie tubes	System-level   192*64 lattice, with backlight LCD, 2 groups of channel-level high-brightness   Nixie tubes	7" true   color screen, touch screen operation
