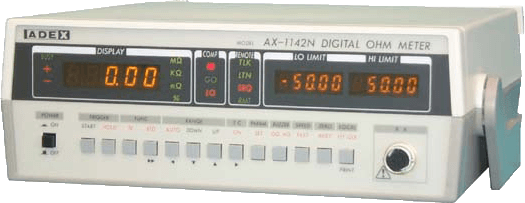

Máy đo kỹ thuật số AX-1142N Adexaile ADEX

Contact-check, thermo electromotive force cancellation-circuit are standard equipment, available to percentage measurement

● Measuring range：0.00mΩ～15.000MΩ

● 4-terminal measurement

● Available to measure the persent the set reference value:
5mΩ～10MΩ±50.0％ [Minimum resolution：5μΩ]

● Temperature compensation [0ppm/℃～9999ppm/℃]
(Sensor：Option ￥12,000)

● Measurement not to influenced by thermal electro motive force.

● Contact-check is equipped as standard function

● GP-IB/RS-232C/Centoronics output available. (Option)

● Comparison result by built-in comparator is open-collector output and displayed as LO, GO, HI by LED and buzzer.

Specifications

Range	Measuring range	Resolution	Measuring current	Accuracy
100mΩ	0.00mΩ～150.00mΩ	10μΩ	100mA	within ±0.05% of rdg ±3digit
1000mΩ	0.0mΩ～1500.0mΩ	100μΩ	10mA
10Ω	0.000Ω～15.000Ω	1mΩ	10mA	within ±0.025％ of rdg ±3digit
100Ω	0.00Ω～150.00Ω	10mΩ	5mA
1kΩ	0.0Ω～1500.0Ω	100mΩ	5mA
10kΩ	0.000kΩ～15.000kΩ	１Ω	500μA
100kΩ	0.00kΩ～150.00kΩ	10Ω	50μA
1000kΩ	0.0kΩ～1500.0kΩ	100Ω	5μA
10MΩ	0.000MΩ～15.000MΩ	1kΩ	0.5μA	within ±0.05% of rdg ±3digit
％	5mΩ～10MΩ±50.0％	0.1％ [5μΩ]	Refer to the above	within ±0.2％±1digit

Open-circuit voltage of measuring terminal	100ｍΩ～100Ω range：less than 5V
1kΩ～10MΩ range：less than 15V
Measuring method	4-terminal measurement (Contact check available)
Sampling time	[Free running mode] 5 times per second～10 times/sec.
[Remote start mode] about 15msec.～30msec.
Comparator set range	[Ω measurement] 4½ digit, both HI and LO (15000)
[％ measurement] 50.0％ (LO：0～－50.0％, HI：0～＋50.0％)
Indication of comparator's comparison result	LED indication LO/GO/HI and buzzer
Control signal	Input： Remote start input Remote hold input Bạn cần hỗ trợ về s.phẩm? Call 024-6687-2330 gb@pemax-mte.com
Output： comparison signal (LO/GO/HI) contact error signal (CONT-E) Completion of the measurement signal (EOC)
Operation condition	[Temp.] ＋5℃～＋40℃　　[Humidity] less than 85%
Power supply	AC100V/117V/220V/240V selectable, 50/60Hz, about 30VA
Outer dimension	about 260 (W) ×90 (H) ×250 (D) mm  (excluding protruding parts such as rubber legs, etc.)
Weight	about 2.6kg

The Outline

Model AX-1142N, digital ohmmeter, can easily measure every resistance from 0.00mΩ to 15.000MΩ, it also possible to percentage measurement for the setup standard value.

Built -in comparator, it can be informed the judgment result by LED indication for LO, GO, HI, and buzzer, also can be printed out.
