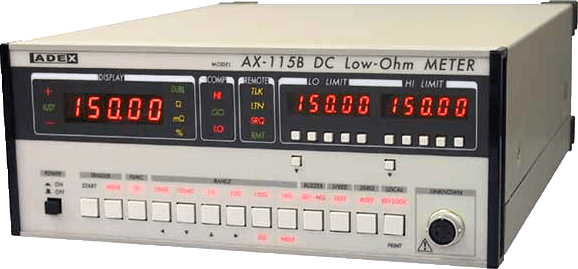

Máy đo kỹ thuật số Milli-Ohm AX-115B Adexaile ADEX

Ideal for automatic measurement of ultra-low resistor

● Most suitable to measure ultra-low resistance for shunt-resistor, etc.

● Measurement not to influenced by thermal electro motive force.

● Impressed the measuring current at pulse interval, in order to reduce abrasion of measuring terminal.

● Contact-check is equipped as standard function.

● Measuring range：0.0000mΩ～1500.0Ω

● Available to measure the persent the set reference value: 0.5mΩ～1kΩ ±50.00% [Minimum resolution of 50n ohm]

● GP-IB/RS-232C/Centoronics output available. (Option)

● Comparison result by built-in comparator is open-collector output and displayed as LO, GO, HI by LED and buzzer.

● Measuring current/voltage-check are built-in as standard function.

Specifications

Measuring range and Accuracy (at23℃±5℃)

Range	Measuring range	Resolution	Measuring current	Accuracy [Slow]
1mΩ	0.0000mΩ～1.5000mΩ	0.1μΩ	3A	within ±(0.01％rdg＋1μΩ) ±3digit [Average] ±4digit [Slow] ±5digit [Fast]
10mΩ	0.000mΩ～15.000mΩ	1μΩ	1A
100mΩ	0.00mΩ～150.00mΩ	10μΩ
1Ω	0.0000Ω～1.5000Ω	100μΩ	100mA
10Ω	0.000Ω～15.000Ω	1mΩ
100Ω	0.00Ω～150.00Ω	10mΩ	10mA
1kΩ	0.0Ω～1500.0Ω	100mΩ	1mA
％	0.5mΩ～1kΩ/±50.00％	0.01％ [50nΩ]	refer to the above

Open-circuit voltage of measuring terminal	less than 5V
Measuring method	4-terminal measurement [contact check]
Sampling time	[Free running mode] 2～10 times per second
[Remote start mode] FAST about 17.5msec./SLOW about 29.8msec. [Single Mode]
Comparator set range	4½ Digit (15000) both for high and low limit, % range：50.00％ [low：0～－50.00％, high：0～＋50.00％]
Indication of comparator's comparison result	LED indication LO/GO/HI and buzzer
Control signal	Remote start input："L" [OV] →"H" [DC12V] start
Remote hold input：Open and "H" [DC12V]：Free run / "L" [OV]：Hold
comparison output [LO/GO/HI]：open collector：max.40V, 100mA
contact error output [CONT-E]：open collector：max.40V, 100mA
end of comparison output [EOC]：open collector：max.40V, 100mA
Operation condition	[Temp.] ＋5℃～＋40℃　　[Humidity] less than 85％
Power supply	AC100V/117V/220V/240V selectable, 50/60Hz, about 60VA
Outer dimension	about 250 (W) ×99 (H) ×300 (D) mm  (excluding protruding parts such as rubber legs, etc.)
Weight	about 3.4kg

The Outline

AX-115B high accuracy Dc digital Low-ohm meter can measure ultra low resistance from 0.0000mΩ to 1500.0Ω (percentage measurement: 0.5mΩ～1.0000kΩ±50.00％) ultra fast, high accuracy.

Either one of GP-IB, RS-232C or centronics output interface could be equipped as an option.

Furthermore, contact check function is standard equipment: When measure 4 terminals, either one contact failure occurs, outputs judgment signal and contact Error signal all together.
