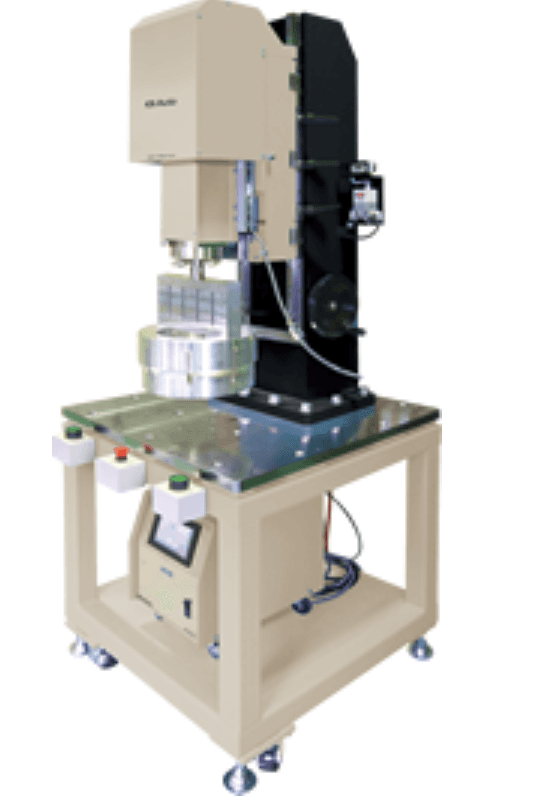

Máy hàn siêu âm W5040 W5050 W5070 W5080 W5085 W5095 W5155 W5185 hãng Avio

Wide Range of Welding Management Functions

• Welding Process Control and Management
  Holds and monitors the melting depth (DEPTH) and finished dimensions (HEIGHT).
• Management and Recording of Set Up & Welding Data
  Records and timestamps each welding parameter.
  Supports USB storage devices and connection to a network environment (LAN).
• Control and Management of Welding Time
  Delay, oscillation period, retention time (cooling time)
• Power Display
  Displays the peak power reached during welding.

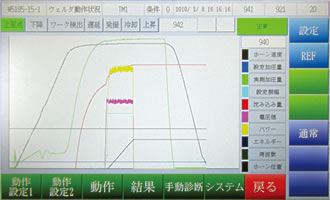

• Display and Record Welding Waveform
  Frequency, air pressure, applied current, displacement of welding head, actual applied pressure and energy can be displayed and recorded as a waveform.
• Other Functions
  Frequency check
  2-step pressure
  After burst
  1 μm resolution welding management

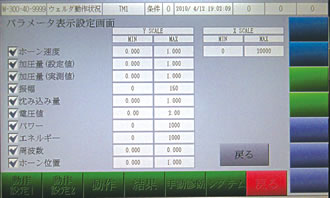

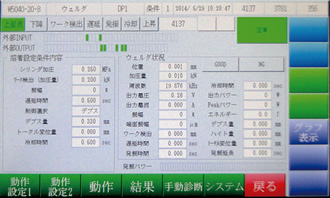

Monitor Screen Sample

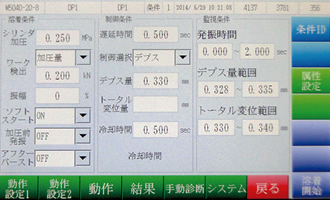

Touch Panel Operation Enables Detailed Setting of Welding Conditions in a Broad Range

W5000 Series - Large Type (W5155 / W5185)

Specifications

Items	W5040	W5050	W5070	W5080	W5085	W5095	W5155 *1	W5185 *1
Output Power	1200W	1600W	2000W	2400W	2400W	3000W	5000W	8000W
Frequency	20kHz	15kHz
Power Source	AC200V ±5% 3Φ 50/60Hz
Oscillation Method	Automatic Tuning Hold Master Oscillator System

Generator

Items	W5040	W5050	W5070	W5080	W5085	W5095	W5155 *1	W5185 *1
Amplitude Adjustment	Variable (30 - 100%, 1% step)
Soft Start	Variable (40 - 200ms)
Operation Type	Color LCD Touch Panel
Welding Management System	Timer/Depth/Height/Energy mode, Waveform parameter display, Welding condition data recording (USB memory, LAN environment connection)
Dimension / Weight	W295 x D550 x H200mm Approx. 10kg	W325 x D580 x H200mm Approx. 13kg	W325 x D580 x H200mm Approx. 16kg	W325 x D580 x H385mm Approx. 30kg

Welder Unit

Items	W5040	W5050	W5070	W5080	W5085	W5095	W5155 *1	W5185 *1
Pressure Method	Air Cylinder (Electro-Pneumatic Regulator and Load Cell Equipped)
Pressure Method	260N	370N	-	-
Maximum Pressure	1500N	2500N	5000N	7000N
Welding Control Method	Linear Scale (0.001mm res.)
Parallelism Adjustment	Spherical Seat-style Support Flange
Compressed Air Supply Required	Clean Air (0.06 - 0.5MPa)
Head Stroke	315mm	Custom-designed *2
Horn Stroke	70mm (Φ63mm Air Cylinder)	95mm (Φ80mm Air Cylinder)	Custom-designed *2
Dimension / Weight	W320 x D550 x H1215mm Approx. 52kg	W380 x D610 x H1335mm Approx. 88kg	Custom-designed *2

• *1 W5155/W5185; Output Power 5000/8000 W, Frequency 15 kHz
• *2 W5155/W5185 are available in the unit type or the automated equipment.
