Dilution Calibrator
Overview

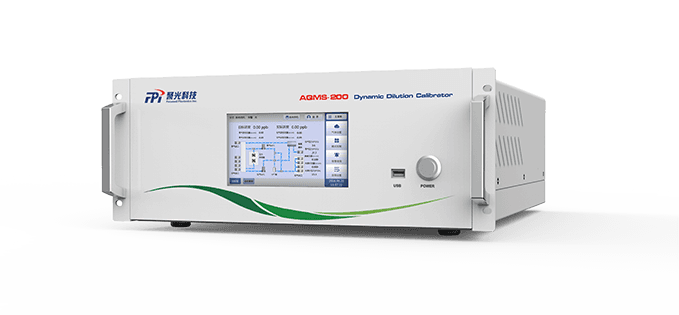

AQMS-200
Dynamic Dilution Calibrator
FPI AQMS-200 multi-gas calibrator utilizes mass flow controller to perform standard zero and span calibration with up to 4 gas sources.
Key Features
- Stable trace level ozone output down to0.1 ppm
- Optional ozone generator, gas phase titration and photometer for independent ozone calibration
- User selectable output include RS232 and ethernet
- High performance mass flow controller provides stable and linearized output
Technical Data
| Dilution System | Flow Measurement Accuracy | ± 1%F.S. |
| Repeatability | ± 0.2%F.S. | |
| Linearity | ± 0.5%F.S. | |
| Response Time | < 60s (T98) | |
| Flow Range of Dilution Air | 0~5 SLPM, 0~10 SLPM, 0~20 SLPM | |
| Flow Range of Cylinder Gases | 0~50 cc/min, 0~100 cc/min, 0~200 cc/min | |
| Calibration Gas Input Ports | 4 | |
| Diluent Gas Input Ports | 1 | |
| Ozone Generator(Optional) | Output | 0.1~6 ppm |
| Stability (7 days) | ± 1% | |
| UV Photometer(Optional) | Range | 0~100 ppb to 0~10 ppm (Selectable) |
| Precision | 1 ppb | |
| Linearity | ± 1%F.S. | |
| Rise/Fall Time | < 20s (photometer response) | |
| Response Time | < 180s (T98) | |
| Zero Drift (7 days) | 1 ppb | |
| Physical and Communication | Power Requirement | 100~240 VAC, 45~55 Hz |
| Dimensions and Weight | 178mm(H) x 432mm(W) x 604mm(D), 15kg | |
| Operating Temperature | 5~40°C | |
| Communication | RS232, RS485, Ethernet |
System Drawing
-
