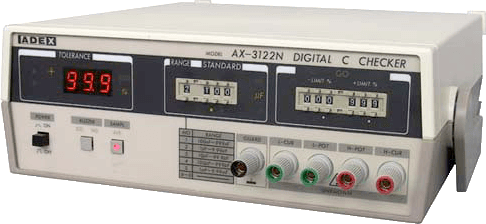

Máy kiểm tra điện dung / trở kháng kỹ thuật số AX-3122N Adexaile ADEX

ltra-high-speed type with a built-in BCD parallel output

● Measuring range：100nF～9.99mF/－79.9％～＋99.9％

● 4-terminal measurement

● A/D conversion method integrating ultra-high-speed

● Measuring value is displayed in percentage against the reference capacitance value set digitally and comparison result by built-in comparator is displayed as -NG, GO, +NG by LED and buzzer.

● BCD parallel out available

● External bias can be applied (max.DC25V)

Specifications

Range	Measuring range	Measuring voltage	Accuracy
1	100nF～999nF	less than 100mV (r.m.s.)	within ±0.25％± (1＋10D) digit
2	1μF～9.99μF
3	10μF～99.9μF
4	100μF～999μF	within ±0.3％± (2 ＋10D) digit
5	1mF～9.99mF	within ±0.5％± (3 ＋10D) digit ±CS (mF) /1mF digit

Measuring method	5-terminal configuration with guard terminal
Measuring frequency	120Hz ±0.1%, sine wave form
Measuring time	[Remote start mode] 10msec.
[Free running mode] 50 times per second
Display of measured value (deviation)	－79.9％～＋99.9％
Comparator set range	upper limit：＋0.0％～＋99.9％, lower limit：－0.0％～－79.9％
Indication of comparator's comparison result	LED indication -NG, GO, +NG and buzzer
Control signal	remote start input
comparison output [LO/GO/HI]：open collector：max.50V, 100mA
end of comparison output [EOC]：open collector：max.50V, 100mA
･BCD parallel output of measured value：fan out　2
Power supply	AC100V/117V/220V/240V selectable, 50/60Hz, about 20VA
Outer dimension	about 260 (W) ×90 (H) ×250 (D) mm  (excluding protruding parts such as rubber legs, etc.)
Weight	about 2.6kg
