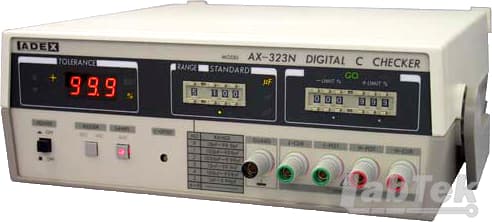

Máy kiểm tra điện dung / trở kháng kỹ thuật số AX-323N Adexaile ADEX

High-speed type with a built-in BCD parallel output

● Measuring range：10.0pF～9.99μF/±99.9％

● 5-terminal measurement method

● BCD parallel output

● External DC bias possible (max. DC25V)

● Percentage measurement compared with the setup standard value by digital switch (3 digit)

● Comparison result by built-in comparator is open-collector output and displayed as LO, GO, HI by LED and buzzer

Specifications

Range	Measuring range	Measuring voltage	Accuracy
0	10pF～99.9pF	about 1V (r.m.s.)	within ±0.25％±0.25pF±1digit
1	100pF～999pF
2	1nF～9.99nF
3	10nF～99.9nF
4	100nF～999nF
5	1μF～9.99μF

Test signal	within 1kHz ±0.1%, SINE wave
C offset range	about 10pF
Decision time ＋ measurement	[Remote start mode] about 10msec.
Sampling time	[Free running mode] 50 times per second
Measured value display range	±99.9％
External bias	max.DC25V
Comparator set range	upper limit：＋0.0％～＋99.9％
lower limit：－0.0％～－99.9％
Indication of comparator's comparison result	LED indication -NG, GO, +NG and buzzer
Control signal	Remote start input："L" [OV] →"H" [DC12V] start
Remote hold input：Open and "H" [DC12V]：Free　run/"L" [OV] ：Hold
comparison output：－NG/GO/＋NG ：open collector：max.50V, 100mA
end of comparison output [EOC]：open collector：max.50V, 100mA
BCD parallel output of measured value [BCD]：fan out　2
Printing command signal：fan out　2
Operation condition	[Temp.] ＋5℃～＋40℃　　[Humidity] less than 85％
Power supply	AC100V/117V/220V/240V selectable, 50/60Hz, about 20VA
Outer dimension	about 260 (W) ×90 (H) ×250 (D) mm  (excluding protruding parts such as rubber legs, etc.)
Weight	about 2.6kg
