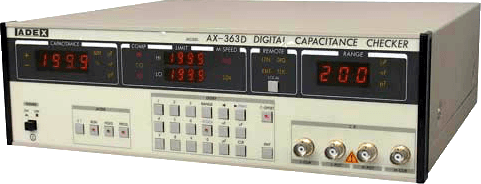

Máy kiểm tra điện dung / trở kháng kỹ thuật số AX-363D Adexaile ADEX

Best suitable for chip, melf, and taping machine of lead type condenser

● CE marking

● Contact-check is equipped as standard function

● During the measurement time：1.2msec.

● Wide measurement range from micro capacity to large capacity (range 20pF～200μF)

● Measurement frequency：1kHz±0.1％ (Sinusoidal waveform)

● 5-terminal measurement method

● HI/LO/GO output installed microprocessor

● 3½Digit (1999) Digital display

● By either GP-IB or RS-232C, all the functions are remote-controllable(option)

● The built-in printer output (based on Centronics)

● Can be printed such as measuring value, σ,3σ, max, min, date, time while measurement

Specifications

Test Current	Standard accuracy	Measuring voltage
20pF	within ±0.25％ of rdg±2digit±0.01pF	1V
200pF	within ±0.2％ of rdg±2digit
2nF
20nF
200nF
2μF
20μF	less than 1V
200μF	within ±0.8％ of rdg±3digit [※within 100μF]

Measuring method	5-terminal measurement, parallel equivalent circuit
Measuring frequency	1kHz ±0.1%, SINE wave
Stray capacity correcting range	about 20pF
Full scale and zero temp. coefficiency	within ±100ppm/℃
Measuring time	[Remote start mode] 1.2msec.
[Free running] 5～7 times per second
Comparator set range	1999 both HI and LO
Operation condition	[Temp.] 0℃～＋50℃　　[Humidity] less than 85％
Power supply	AC100V/117V/220V/240V selectable, 50/60Hz, about 30VA
Outer dimension	333 (W) ×99 (H) ×300 (D) mm  (excluding protruding parts such as rubber legs, etc.)
Weight	about 5.8kg
