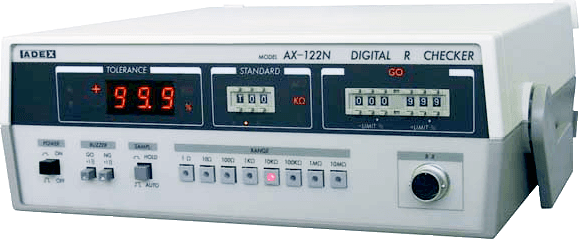

Máy kiểm tra điện trở kỹ thuật số AX-122N Adexaile ADEX
LED indication [-NG] [GO] [+NG] built-in digital comparator
● Measuring range：0.1Ω～9.99MΩ±99.9％
● 4-terminal measurement
● High speed dual slope A/D converting method.
● Percentage indication by digital setup for standard resistance value
● Built-in digital comparator
● BCD parallel out
● Temperature compensation (T.C) function of the copper wire (Sensor：Option)
Specifications
Measuring range and Accuracy (at23℃±5℃)
| Range | Measuring range | Measuring current | Accuracy |
|---|---|---|---|
| 1Ω | 0.1Ω～0.999Ω | DC100mA | within ±0.3％ ±1digit |
| 10Ω | 1Ω～9.99Ω | DC100mA | within ±0.2％ ±1digit |
| 100Ω | 10Ω～99.9Ω | DC10mA | |
| 1kΩ | 100Ω～999Ω | DC5mA | |
| 10kΩ | 1kΩ～9.99kΩ | DC500μA | |
| 100kΩ | 10kΩ～99.9kΩ | DC50μA | |
| 1MΩ | 100kΩ～999kΩ | DC5μA | |
| 10MΩ | 1MΩ～9.99MΩ | DC0.5μA | within ±0.3％ ±1digit |
| Open-circuit voltage of measuring terminal | less than 15V |
|---|---|
| Measuring method | 4-terminal measurement |
| Sampling time | [Auto] 12.5 times/sec. (Power 50Hz), 15 times/sec. (Power 60Hz) |
| [Remote start mode] 80msec. (Power 50Hz), 66.7msec. (Power 60Hz) | |
| Measured value display range (deviation) | －99.9％～＋99.9％ |
| Comparator set range | upper limit：＋0.0％～＋99.9％, lower limit：－0.0％～－99.9％ |
| Indication of comparator's comparison result | LED indication -NG/GO/+NG and buzzer |
| I/O signals | remote start input |
| comparison output (－NG/GO/＋NG)：open collector：max.80V, 100mA | |
| Completion of the measurement signal (EOC)：open collector max.80V, 100mA | |
| measured value in BCD parallel (fan out 2) | |
| measured value in BCD parallel (fan out 2) | |
| Power supply | AC100V/120V/200V/240V selectable, 50/60Hz, about 15VA |
| Outer dimension | about 260 (W) ×90 (H) ×250 (D) mm (excluding protruding parts such as rubber legs, etc.) |
| Weight | about 2.6kg |
The Outline
Model AX-122N, digital ohmmeter, can be percentage measurement from 0.1Ω to 9.99MΩof resistance value.
The unit is indicated the measurement value for digital displayed by high-speed double integral type analog to digital conversion system, and outputs a signal outside to judge -NG, GO, and +NG installing with comparator.
