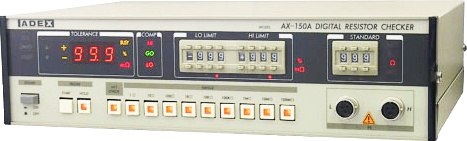

Máy kiểm tra điện trở kỹ thuật số AX-150A Adexaile ADEX

SKU:1151-20060

Model AX-150A High Speed and High Accuracy Type Digital Resistance Checker

Best Suitable for sorting machine such as G, J, K, and M class, chip, melf, lead type resistor of sorting machine, taping machine, and coating conveyor

● Fast measurement (FAST)：about 2.1msec. [60Hz]/2.5msec. [50Hz]

● Measuring range：0～999mΩ and 0.01Ω～99.9MΩ

● Display shows percentage indication by digital setting for a standard resistance value

● HI/GO/LO output installing with digital comparator

● Contact-check function (option) is selectable from premeasurement/postmeasurement/OFF

● Shift output and solenoid power source output (option)

● Measuring current/voltage-check are built-in as standard function.

Specifications

Measuring range and Accuracy (at23℃±5℃)

Measuring range	Measuring current	Accuracy	Indication range
SLOW	FAST
0.1Ω～0.999Ω	100mA	within ±α±0.2％±1digit	within ±β±0.2％± (2＋n) digit	±99.9％
1Ω～9.99Ω	50mA	within ±0.2％±1digit	within ±0.2％±(2＋n)digit
10Ω～99.9Ω	5mA
100Ω～999Ω
1kΩ～9.99kΩ	0.5mA
10kΩ～99.9kΩ	50μA
100kΩ～999kΩ	5μA
1MΩ～9.99MΩ	0.5μA	within ±0.3％± (2＋n) digit
10MΩ～99.9MΩ	0.05μA	within ±0.2％±2digit	－－－－	－－－－
ｍΩ　CHECK (0～999mΩ)	50mA	within ±0.2％±1digit	within ±0.2％±2digit	0～999mΩ

※α:（500/setup value mΩ）×0.01%, β: (500/ setup value m Ω)×0.02%, n: when measuring time is F1, n=1, when measuring time is F2, n=0)

Measuring time	Power source frequency	Remote start	Free running
SLOW	FAST-1 (F1)	FAST-2 (F2)	SLOW	FAST
60Hz	about 16.7msec.	about 2.1msec.	about 4.2msec.	30 times per second	30 times per second
50Hz	about 20.0msec.	about 2.5msec.	about 5msec.	25 times per second	25 times per second

※Judgment time (from input start signal to output EOC signal) adds about 1.5msecond for the measuring time above (slightly differ from a range)

※When before contact check, it adds about 3.5msecond, and adds about 0.7msecond after contact-check for the judgment time above.

Open-circuit voltage of measuring terminal	less than 15V
Measuring method	2-terminal measurement (more than 100kΩ) 4-terminal measurement (less than 99.9kΩ)
Setting range for measurement value	±00.0％～±99.9％　both for high and low limit In a case of ｍΩCHECK：000mΩ～999mΩ
Operation condition	[Temp.] 0℃～＋50℃　[Humidity] less than 80％
Power supply	AC100V/117V/220V/240V switchable, 50/60Hz, about 50VA
Outer dimension	about 333 (W) ×85 (H) ×245 (D) mm (excluding protruding parts such as rubber legs, etc.)
Weight	about 2.8kg

The Outline

AX-150A can measure a wide range of resistance from 1mΩ to 99.9MΩ,ultra fast speed, high accuracy. The unit can be shown the measured value as a digital indication, and also outputs a signal outside to judge HI/GO/LO. It can be switched a measuring speed, selectable from 2 types of FAST, a type of SLOW.

The unit can be equipped Contact-check function as an option: When measures 4 terminals, if either one occurs contact failure, judges a detect regardless of its measured value, and outputs failure signal outside and C.E. (Contact-check error) signal all together.

The behavior of Contact-check is selectable from premeasurement/postmeasurement/OFF with a switch of a behind panel.

Also it sets [a checking circuit of an abnormal measuring current] has always watching a measurement current, outputs NG judgment when terminal trouble of contact condition occurred during measurement.

Either shift output-solenoid power supply or BCD date can be placed as an option.
