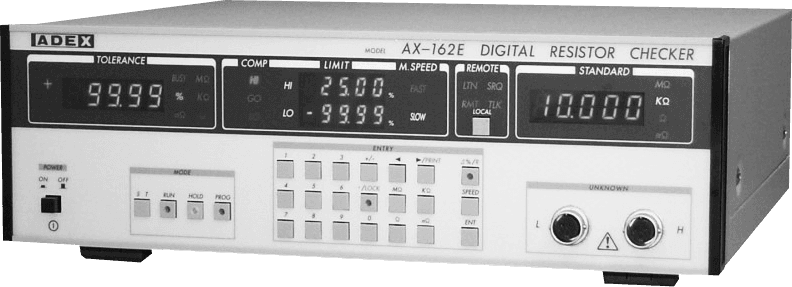

Máy kiểm tra điện trở kỹ thuật số AX-162E Adexaile ADEX
Best Suitable for D, F, G, J, K classes, chip, melf, lead type resistance sorting machine, and taping machine
● This device is correspond to the minimum chip. (Low measurement force)
● Ultra-high speed:0.7 msec. [TYP]
● High accuracy and high stability by the measuring method rejected thermoelectromotive force.
● Available to make the ultra-high speed and high stable measurement by the setting function of average time on measuring value for each range.
● Range of measurement for absolute value: 0.00mΩ～200.00MΩ for %:5mΩ～109MΩ [±99.99%]
● Available to select the function for contact check before or after the measurement, or function of non-contact check.
● RS-232C and Centronics interface are built-in as standard equipment. [GP-IB is option]
● Printer output as standard equipment. (Centronics)
● Transfer function of Setting data is built-in as standard equipment. (Available to transfer the same setting data to another set of AX-162E)
● The checking circuit of the abnormal measuring current and voltage is built-in.
Specifications
Measuring range and Basic accuracy (at23℃±5℃), 180days after calibration [In the case of 1 year after calinration is 1.5 times]
| Measuring range | Setting range of standard value | Measuring current | Accuracy | |
|---|---|---|---|---|
| SLOW | ※FAST | |||
| 100mΩ | 5mΩ～100mΩ | 100mA | within ±0.02％±2α±2d |
within ±0.03％±3α±2d±[2/(1+n)] d |
| 1Ω | 100.1mΩ～1Ω | 100mA | within ±0.02％±α±1d | within ±0.02％±α±2d ±[2/(1+n)] d |
| 10Ω | 1.001Ω～10Ω | 50mA | ||
| 100Ω | 10.01Ω～100Ω | 10mA | within ±0.02％±1d | within ±0.02％±2d ±[1/(1+n)] d |
| 1kΩ | 100.1Ω～1kΩ | 5mA | ||
| 10kΩ | 1.001kΩ～10kΩ | 0.5mA | ||
| 100kΩ | 10.01kΩ～100kΩ | 50μA | ||
| 1MΩ | 100.1kΩ～1MΩ | 5μA | within ±0.05％±2d ±[1/(1+n)] d |
|
| 10MΩ | 1.001MΩ～10MΩ | 0.5μA | within ±0.03％±1d | within ±0.2％±4d ±[1/(1+n)] d |
| 100MΩ | 10.01MΩ～109MΩ | 0.05μA | within ±0.1％±2d | －－－－ |
※d: digits, n=integral time(msec), when percentage measurement: α=(100/standard setup value mΩ)×0.01%, when absolute value measurement: α=0 (adds±1d)
On FAST, the accuracy is with fully shielded
| Measuring time | Remote start | Free running | |
|---|---|---|---|
| SLOW | FAST | SLOW | FAST |
| about 18msec. ～about 400msec. |
about 0.7msec. ～about 400msec. |
about 30 times/sec. ～about 2 times/sec. |
about 60 times/sec. ～about 2 times/sec. |
| EOC [End of comparison] pulse width | 1～250msec. or continuative |
|---|---|
| Measuring method | 2 or 4-terminal measurement |
| Setting range for judgment value | % Measurement：±99.99％ Absolute measurements：00000～20000 |
| Operation condition | [Temp.] 0℃～＋50℃ [Humidity] less than 80％ |
| Power supply | AC85V～265V, 50/60Hz, about 50VA |
| Outer dimension | 333 (W) ×99 (H) ×300 (D) mm (excluding protruding parts such as rubber legs, etc.) |
| Weight | about 3.5kg |
The Outline
AX-162E can measure a wide range of resistance from 0.00mΩto 200MΩ, ultra fast speed, high accuracy.
The unit is built in microprocessor to judge the measured value for HI/GO/LO decision, outputs a signal outside.
The measured value is indicated as a deviation value of ±99.99％, or resistance value(max.20000 count).
The unit can be switched a measuring speed, both FAST and SLOW can set an integral time each range.
Contact-check function as a standard equipment: When measure 4 terminals, either one contact failure occurs, judges H decision, and outputs HI signal with C.E (Contact Error) signal outside regardless of its measured value at the same time.
The Contact-check is selectable from premeasurement/postmeasurement/OFF.
Besides, a check function to observe the measuring electrical current/electrical voltage always has set, when bad contact situation occurs during measurement, outputs to judge NG decision.
RS-232C (GP-IB is an option) can be set measurement condition such as output the measuring date, standard resistance or limit value.
The function of transfers the setup date can easily and quickly transfers another AX-162E for the same value of a range, standard, limit, is very useful when use two units together (joint cable is sold separately)
Besides, for setup of a measuring range to handle a key of front panel is only put in a standard resistance value to select automatically an appropriate range built in microprocessor so as to remove the burden of the setup a range.
Moreover, a content of the setup keeps by battery backup even the power source OFF.
