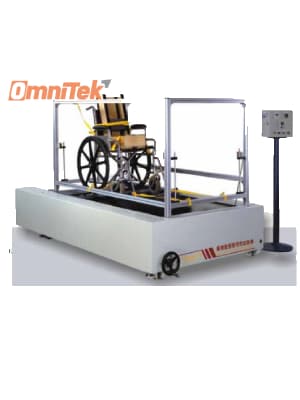

Máy kiểm tra độ bền động của ghế lăn Hung Ta Hungta HT-2388 (Mô phỏng trong Trạng thái Chạy)

HT-2388
Wheel-chair's Dynamic Endurance Tester
(Simulate under Run Status)

® Drill a block-fixing hole at 90°of each roller.
® Embossed the roller's surface with flower design.
® Chain-driven raller design.
® Perform anti-corrosion process on roller's surface.
® The distance between the center of each rall pair
is 395~1100 mm which is adjustable.
(or specified one).
® Use hand-wheel to fast modulate to the
distance between the center of roll pair.
®@ Six-digit electronic counter (one set).
® Structure-failure-shutdown sensor (two set).
® Motor rpm meter (one set)
® Electronic timer (one set)
@ EM clutch (one set)
@ Test Module. Conforms to |SO 7176-11
® Security Devices:
1. Emergent stop switch
2. Current overflow auto-shutdown system
3. Auto-shutdown sensor when the installed specimen position is offset.
@ One set of magnetic brake, able to simulate ramp control. The control range is within 0°~15° (Optional)
