Máy kiểm tra giảm chấn HT-1560EM

SKU:1168-20060

Preface：
This tester is used to test the damping force of steam turbine rakes and self-propeller rakes to determine the quality of shock absorbers.

Specifications：
1、Capacity：2000 kg
2、Line speed：0.05~2.0 m/sec (stroke by 500 mm)
3、Test stroke (adjustable)：0~100 mm，fixed size：20、30、40、50、75、 100、150、200 mm（or as request）
4、Adjusted stroke：MAX. 1000 mm
5、Internal test space：240 × 1000
6、Axle driving system：Servo motor + control system
7、Crosshead up/down hydraulic lockingdevice
8、Grips to be decided by actual sample (optional)
9、Crosshead up/down limit protection
10、Electric control system：crossheadup/down key, home, axle start/stop, testNG、OK key, error, counter, buzzer, emergency stop
Auto/manual switch key, hydraulic grip ; cable controller…etc
11、Computer cabinet for PC, monitor,keyboard, AMP, printer
12、Test program 1 set
13、Hydraulic grip and hydraulic power system 1 set
(Grips are optional not included in the offer.)
14、Dimensions：1700 × 1300 × 1750
15、Control box：700 × 900 × 1750
16、Weight ：about 1500 kg

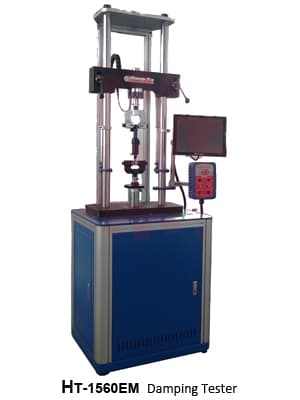

HT-1560EM Damping Tester

1、Capacity：2000 kg
2、Line speed：0.05~2.0 m/sec (stroke by 500 mm)
3、Test stroke (adjustable)：0~100 mm，fixed size：20、30、40、50、75、100、150、200 mm（or as request）
4、Adjusted stroke：MAX. 1000 mm
5、Internal test space：240 × 1000
6、Axle driving system：Servo motor + control system
7、Crosshead up/down hydraulic locking device
8、Grips to be decided by actual sample (optional)
9、Crosshead up/down limit protection 10、Electric control system：crosshead up/down key, home, axle start/stop, test NG、OK key, error, counter, buzzer, emergency stop
11、Computer cabinet for PC, monitor, keyboard, AMP, printer
12、Test program 1 set
13、Hydraulic grip and hydraulic power system 1 set (Grips are optional not included in the offer.)
14、Dimensions：1700 × 1300 × 1750
15、Control box：700 × 900 × 1750
16、Weight ：about 1500 kg
