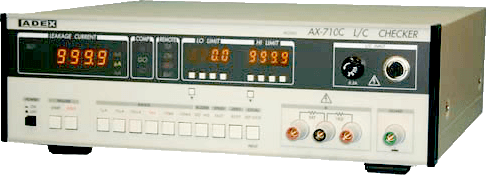

Máy kiểm tra rò rỉ của tụ điện AX-710D Adexaile ADEX

SKU:1151-20410

Model: AX-710D Electrolystic Capacitor

For the Measuring and Judging the leak current of electrolystic capacitor at high speed.

● Measuring Range: 0.0nA～299.99mA

● Available to make Contact-Check [about 5msec.] in case of 2 Terminal Measurement.

● Series Protection Resistor: Built-in [1kΩ] / Available to have External Series Protection Resistor.

● Measuring Time: About (9msec.＋Mmsec.＋Contact-Check Time). [Available to set M: 1～180msec.]

● Built-in Digital Comparator.

● GP-IB/RS-232C/BCD-Parallel Output/Centronics Output. (Option)

Specifications

Range	Measuring range	Resolution	Accuracy	Display
3μA	0.0nA～2999.9nA	100pA	within ±0.1％±5digit [Measuring time: AC1]	－999～＋29999
30μA	0.000μA～29.999μA	1nA
300μA	0.00μA～299.99μA	10nA
3mA	0.0μA～2999.9μA	100nA
30mA	0.000mA～29.999mA	1μA
300mA	0.00mA～299.99mA	10μA

Sampling time

[Free running mode] about 3 times per second～5 times per second [Slow],
about 5 times per second～10 times per second [Fast]

[Remote start mode] about (9.5msec.＋Mmsec.＋Contact-Check Time)

Mfast	: Available to set 1～99msec. or AC1
MSLOW	: Available to set AC1～AC9

[

ACn:	Power Line Freq, 60Hz＝16.7msec.×n Power Line Freq, 50Hz＝20.0msec.×n

Contact-Check Time: about 5msec.

Comparator set range

00000～29999 both HI and LO

Indication of comparator's comparison result

LED indication LO/GO/HI and buzzer

Timer set

000.00～999.99sec.

Control signal

Input

START (Remote start)

"L" [OV] →"H" [DC12V]

HOLD (Remote hold)

Open or "H" [DC12V] ：Free　run/
"L" [OV] ：Hold

Output

LO/GO/HI (comparison)

Open collector: 40V/100mA (max.)

CE (contact error)

EOC (end comparison)

Operation condition

[Temp.] ＋5℃～＋40℃　　[Humidity] less than 85％

Power supply

AC100V/117V/220V/240V selectable, 50/60Hz、about 20VA

Outer dimension

about 333 (W) ×99 (H) ×300 (D) mm (excluding protruding parts such as rubber legs, etc.)

Weight

about 4.5㎏

The Outline

It is available to measure and judge the leak current of electrolystic capacitor at high speed.

The measuring value is displayed at 4 digits, the measured value is compared with the set value and judged, and then the judged output is made.

Also, it is available to make Contact-check in case of 2 terminal measurement, too.
