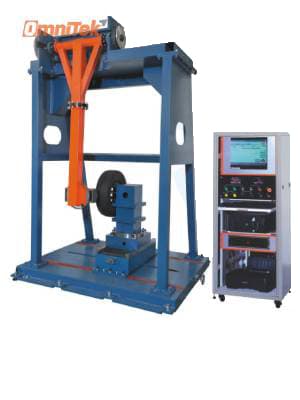

Máy kiểm tra tác động nguy hiểm trên đường Hung Ta Hungta HT-8041 RHI

This equipment is designed and manufactured as per the testing standard of SAE J1981, which imitates the
tire running on the road, and measure the effects of the pit and bumps impacting against the tire, in order to
evaluate the tire being impacted, how road wheel can resist the change of tire pressure, and the damage to
the tire.
® Pendulum impact length: 1828.8 mm, can be extended to 2028.8 mm, with a 54 kg weight drop hammer
at the end of pendulum, swinging radius of 1835.2 mm
® Automatic pendulum lifting and release device
@® Hammer angle adjustment: X axis + 30°, Z-axis + 85°
® Pendulum test angle: Max. 179°
® The weight of pendulum plus drop hammer: 164 kg
® Drop hammer falls at 5 ° position, the impact speed of 23.33 km/hr
® Test tire specifications: tire outside diameter 300 ~ 1000 mm
® Barometric pressure sensing device, with measurement accuracy: 0.5%
® Accelerometer, with measurement accuracy: 1%
® Computer generating factors: tire pressure, acceleration and control parameters
® Protection shield (optional)
