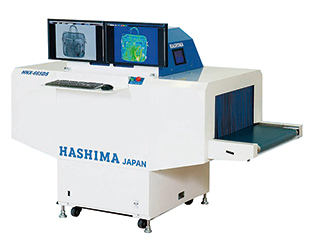

Máy kiểm tra tia X-biên giới 6630DS HASHIMA

Double Directions Shooting with 25 degree

Double Direction Shooting will be helped to find out small foreign object with different angles photos.

High-precision sensor

With high-precision X-ray linear sensor, image of 300μm size of foreign object can be taken.
Note: It may show unclear image, depends on the inspected material

Ultrafast Processor

To process large volume of images at high speed, quipped with the 64bit ultrafast CPU (Corei7) and the large capacity memory of 8GB which doubles the processing capabilities.
(This spec may be changed without any notifications)

Dual Monitors

2 monitors are included as standard equipment. During the inspection, up to 6 images can be displayed at a time.

Full-color Display

Full-color inspection screens make the detection of foreign object easier.

Adjustable-speed Photographing

Photographing speed can be adjusted for each products.

Memory Function

Setup condition for each product class (X-ray intensity, screen setting, auto detection, conveyor speed image range) and images can be saved to the memory. (up to 30 products classes

Traceability

All image data are saved and the matching label for each product can be printed out with the optional label printer. Images can be color printed. Also, via computer network, images can be transferred.

Simple Measuring Function

To minimize oversight, X-ray image automatically assists the operator in detection foreign objects. (it doesn’t ensure 100% detection)

Simple Foreign Objects Auto Detection Function

Using the scanned image, the distance between 2 points on the belt can be simply measured.

Multi langrage Display

Come equipped with Japanese, English, and Chinese display.

Safety-sensitive Design

To protect the operator from X-ray exposure, equipped with sufficient safety measure.

Large size LCD Display

In addition to the 2 screens, large size LCD on the main body also shows the operation condition, availability etc.

X-ray Protection Function

For the longer operating life of X-ray tube, “Auto aging” and “Auto cooling” functions save the X-ray, and X-ray dosage is controlled during each inspection.

Inspecting Direction

Products can be put in from both sides. (Right or Left) required setting.）

Energy saving function

Depending on the operation aspect, automatically control and reduce power consumption.
