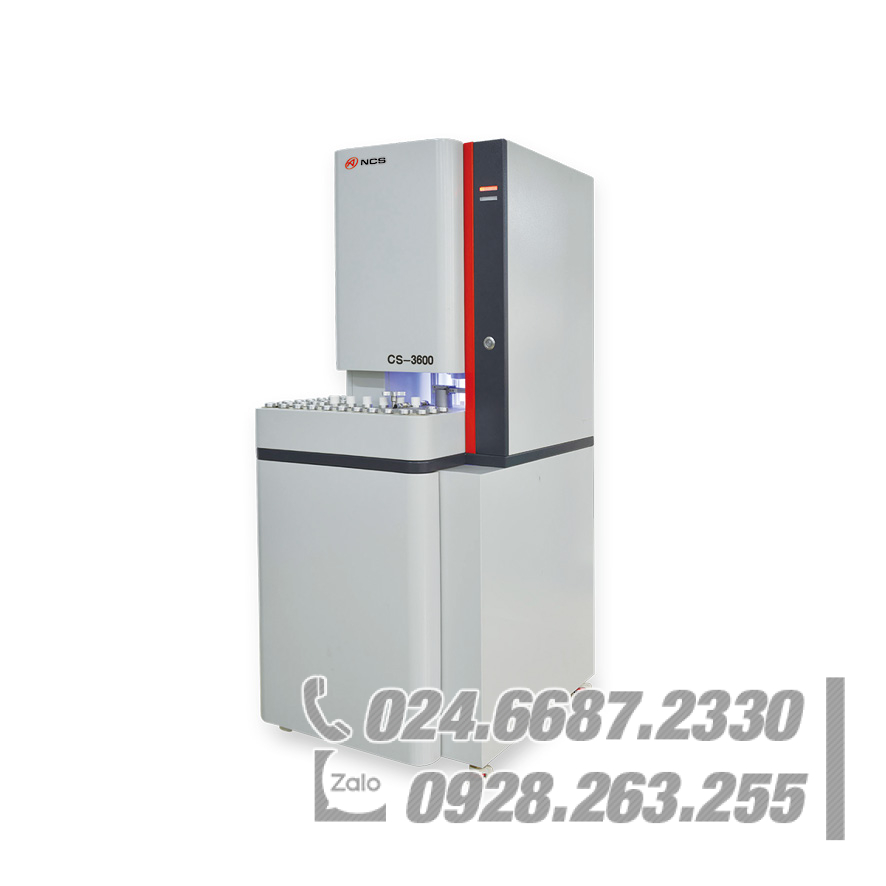

CARBON & SULFUR ANALYZER CS-3600
CS3600 Carbon and Sulfur analyzer can provide accurate and fast content of carbon and sulfur in metallic mineral, ceramic, cement, lime, rubber, coal, coke, refractory materials, carbide, graphite, oil
products, catalysts, soil and other solid materials simultaneously
CS3600 Carbon and Sulfur analyzer can provide accurate and fast content of carbon and sulfur in metallic mineral, ceramic, cement, lime, rubber, coal, coke, refractory materials, carbide, graphite, oil
products, catalysts, soil and other solid materials simultaneously
Reliable and durable heating elements and combustion tube are adopted to achieve the stability of the heating rate and the accuracy of the temperature which is set according to the sample. Max. temperature can be 1550℃ .
Vertically installed resistance furnace can prolong the working life of the heating elements and the tube signifcantly;
The ceramic crucibles are used and noncontacted to the combustion tube.
Oxygen supplied steadily from both the gun and the chamber ensures the complete combustion of the sample
Open ?ow system is controlled accurately and stably by the unite of high precision electric ?ow control and the pump control technique
The design of maximum clamp current limit ensures the heating power is under control and safe.
Automatic sampling loading system:
Integrated automatic sample loading system can realize the batch analyses, Max.60 samples per batch;
Crucible position, sample load, sample analysis can be done automatically and the waste crucible can be thrown into the container after analysis ;
Positioning method combined with laser technique and mechanical design ensures the precise location of the crucible.
Infrared detecting system:
Full range linearized infrared detection system;
Flexible customized infrared system, Max. 4 independent physical channels can be assembled.
Application software:
Application software with powerful operation functions, full range linearization model; ?exible calibration modes; convenient and strong data statistical capability;
Automatic analysis process, 60 samples can be stored at one time;
Real time and intelligent remote control
*Parameters
Analytical range:
C:0.01% ~ 100%*
S:0.005% ~ 100%*
Accuracy:
LC:RSD ≤ 1%;HC: RSD ≤ 0.5%
LS:RSD ≤ 1.5; LS: RSD ≤ 1.5%
Sensitivity:
C and S: 0.01ppm
Analysis time:
60s-180s(typical)
Sample carrier:
ceramic crucible
Power supply:
220VAC ±10% 50/60Hz 16A
Dimensions:
814mm(W)*710mm(D)*1650mm(H)
Weight:
About 100kg
