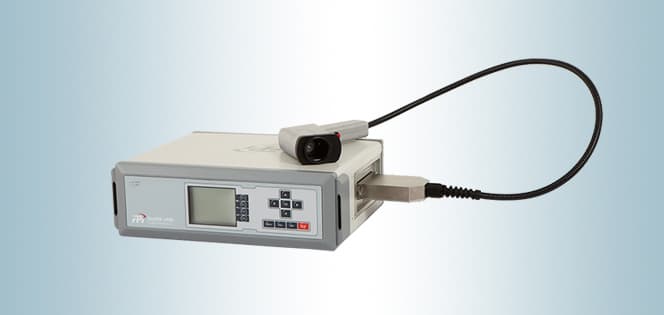

Máy phân tích hồng ngoại cầm tay SupNIR-1000 FBI

Overview

SupNIR-1000 series portable near infrared analyzer is designed to be a portable analyzer for onsite rapid detection, wavelength range covers 600 to 1800nm, compact structural design, small size, built-in rechargeable battery, large capacity storage device and LCD module. By configuring different measuring attachment, the analyzer can implement rapid detection of no destruction of flake, pellet, pasty, powder and liquid samples in some composition of physical and chemical. It has been widely applied in fruit farming, food quality, scientific research, and other fields.

Features

Stable and reliable portable solution.

Small volume, light weight, only 6 kilogram.

Easy to operate, can be easily grasped by non technican.

Built-in USB interface, Transfer data to the computer directly.

Can implement rapid detection of no destruction on onsite samples.

High accuracy detection, close to the normal analysis accuracy of lab.

A variety of power supply methods, 19V DC and built-in lithium battery.

Rapid analysis, synchronously measure multiple indexes within 30 seconds.

Built-in standard substance, has automatic diagnosis and fault prompts functions.

Built-in strong storage devices, achieve the analytical data and spectrogram   storage.

Configure  RIMP  software  with  instrument, can  implement  upload and download of data, edit and output analytical report,  realize network  long  distance  control.

Abundant  measurement  accessories, can realize different sample analysis, convenient to change probes.

Application Areas

Sample types	Measurement index
Fruit	SSC ,Acidity ,Hardness
Meat	Moisture, Fat, Protein
Edible oil	Fatty acid, Acid value, Lodine value
Tobacco	Nicotine, Moisture, General sugar, Reductive sugar,General chlorine, Origin identification, Classification .
Cloth	Composition content of mix textiles
High molecular	Molecular, Density, Remnant monomer, Additive content, Plastics type identification
Soil	Moisture, Organic quality, General nitrogen content,Soil classification.
Medical substance	Crystal state, Pellet diameter, Density, Quality degree

Note: canincrease measurement types and index based on customer requirement

Technical Data

Product type	SupNIR-110         SupNIR-1520
Wavelength range	600-1100nm         1000-1800nm
Noise	< 100uA             <50uA
Wavelength accuracy	0.2nm              02.nm
Wavelength repeatability	±0.05nm           ±0.05nm
Resolution	6nm                6nm
Stray light	<0.1%             <0.1%
Detection time	<30seconds         <30seconds
Number of storage models group	6 groups            4 groups
Number of simultaneous analysis index	6                  6
Storage spectrum	500               500
Storage analysis results	6000               6000
The light source power	Inner 5V/5W, outer 5V/10W
The light source life span	> 5000 hours
Communication interface	USB2.0
Temperature range	(5-35) °C
Humidity range	(5-85) %
The light source	19V DC/4.5A or lithium batteries(work continuously for less thaneight hours)
Dimension(length × width × height)	355mm×278mm×117mm
Weight	6kg
