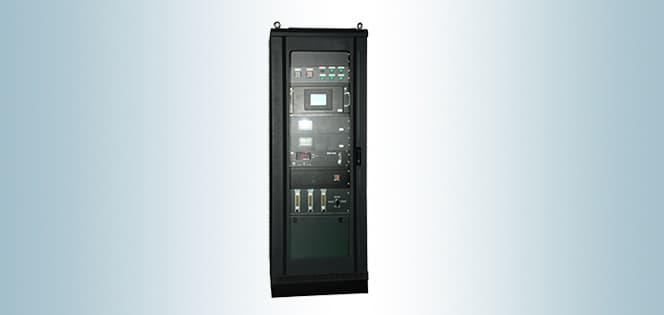

Máy phân tích khí Laser LGA - C300 FBI

Features and Benefits

• Integrated and compact
• Low cost ownership and operation

• Reliable in harsh conditions
• Simultaneous and continuous multiple fuel compositions

  (CO, CO₂, CH₄, H₂) analysis

Application Areas

• Calorific value analysis in iron&steel
• Syngas analysis

Technology Comparison

Items	Combustion based CV Analyzers	FPI's LGA-C300
Key component	Automatic ignition device, is   prone to be disturbed by gas flow, pressure and gas source.	Spectrometer based,on-line and   continuous.
Calibration gas	Gas proportion dependent,   complex and less accurate.	Standard cylinder gas.
Reliability	5 steps: sampling, ignition,   combustion,heat exchange and vent, more moving parts.	3 steps: sampling, measure and   vent, less moving parts.
Safety	Open flame	No flame, no chemical reaction.
Response time	Slow. Limited by combustion and   heat exchange	≤21s
Consuming parts	Pressure regulator, igniter,   heat exchanger,etc.	No consuming parts.
Output	Calorific Value and Wobbe   Index.No indication of gas composition changing.	Calorific Value and CO,CH4,H2   concentration,real quantitative detection.

Composition

Technical Data

CO: 0-100%*

CO2: 0-100%*

CH4: 0-100%*

H2: 0-100%*

* Measurement ranges (percentage) customizable on request.



Dimension
