Máy tạo không khí FBI

Overview

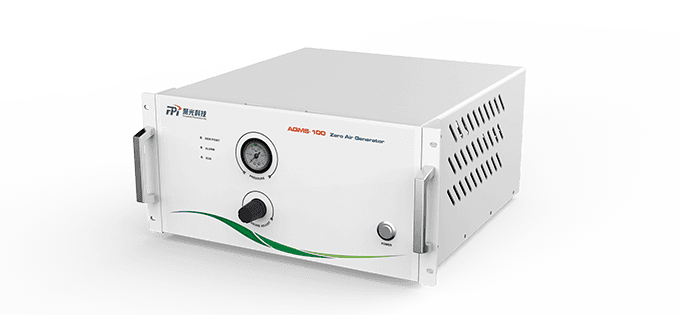

AQMS-100

Zero Air Generator

FPI AQMS-100 provides ultra pure pollutant-free zero air for analytical purpose. Remote monitoring and configuration can also be achieved through digital access.

Key Features

• Ultra high purity zero air output
• Integrated dew point sensor
• Regenerative dryer utilizing molecular sieve to perform maintenance free advantage
• High performance scrubbers to remove hydrocarbon, CO, SO2, NO, NO2 and Ozone
• Remote display and configuration on key functions

Principle

The AQMS-100 generates clean and dry zero air by removing components which will cause interference on monitoring results.

Regenerative scrubber

The scrubber is filled with molecular sieve which has multiple holes and filters only water molecule with certain diameter. A second molecular sieve will be alternate for raw air diversion while the other is under regeneration by injecting compressed air to remove moisture.

HC/CO/NO scrubber

To remove hydrocarbon, CO and NO, three dependent scrubbers applying catalytic reaction are used, where HC and CO will be converted into CO2 which does not interfere analysis and NO will

be converted into NO2 which will then be removed by purifier.

Technical Data

Output	20 SLPM at 30 psig
Dew Point	-30℃
Output Concentration	SO2: <0.025 ppb
NO: <0.025 ppb
NO2: <0.025ppb
O3: <0.3 ppb
CO: <10 ppb
CH4: <5 ppb
Other HC: <0.25ppb
Power Requirement	100~240 VAC, Converter applicable
Operating Temperature	0~40℃
Dimensions	221mm(H) x 482mm(W) x 554(D)

System Drawing
