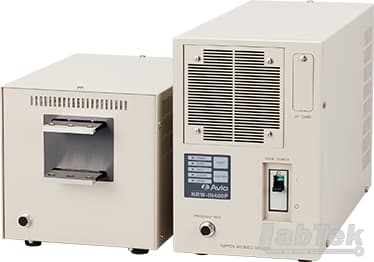

Nguồn hàn NRW-IN400P kiểu Inverter hãng Avio biến áp NT-IN8444A
Máy hàn hiệu suất cao và dễ dàng sử dụng.
This product is High reliability inverter type resistance welding power supply which realizes high definition control. Free inverter frequency selection type and 127 step free style welding profile which realize high reliability welding in variety welding scenes. By Program Box that remote control is possible, it will improve more freedom in terms of arrangement of welding power supply in an automated system. Automation machine type welding power supply which equipped high dustproof.
Selectable frequency (2k, 4k, 5kHz)
127 steps (Slope, weld, cool) parameter setting
Variation of weld stop: Less than 1ms
Enhanced dust-proof structure (Dust, oil mist)
Remote control by program box
Multiple power source 3-phase AC200V to 480V
Ethernet Connection
Máy hàn kim loại, máy hàn điện trở, máy hàn inverter, máy hàn micro, thiết bị hàn hãng Avio
| NRW-IN400P | |
|---|---|
| Welding Transformer | NT-IN8444A |
| Control Frequency | 2000／4000／5000Hz Selectable (Selectable on each PRG.No.) |
| Control Method | Primary peak current FB/Primary average current FB/Secondary effective current FB/Secondary effective current FB/Secondary effective power FB/Fixed pulse width FB |
| Primary Max. Output | 400A air cooling 5% (200A air cooling 20%) |
| Number of Weld | Max. 127 STEP (Slope, Weld, Cool) |
| Breaker Capacity | 75A |
| Number of Program | 255 Conditions |
| User Interface | Program Box |
| Monitor Function | Average/peak of current, voltage,power, resistance Average of pulse width |
| Waveform Display | N/A |
| Cooling Method | Air cooling |
| Communication, etc. | Ethernet, CF card |
| Input Power | 3 phase AC200 to 480V ±10% |
| Dimension / Weight | W186×D490×H279mm / Approx. 18kg |
- * Power cable/weld power cable / weld sense cable / program controller cable are sold separately
(Please specify length.)
| NT-8444A | ||
|---|---|---|
| Rated Capacity | 32.6 kVA | |
| Primary Input Voltage | 300 V | 600 V |
| Secondary Open-circuit Voltage | 14.1 V (at 220 V) | |
| Transformer Winding Ratio | 22:1 | 44:1 |
| Input Frequency | 5kHz | |
| Maximum Current | 8000 A | |
| Duty Cycle (Weld time) | Air cooling 5% (1000 ms) | |
| Cooling Method | Air Cooing | |
| Dimension / Weight | W200 x D195 x H300 mm / Approx. 22 kg |
