Nguồn hàn TCW-DP100 hãng Avio

Ultimate Pulse Heat Controller!
Concurrency Control of Temperature and Displacement!

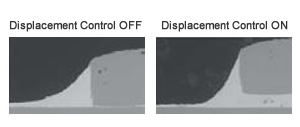

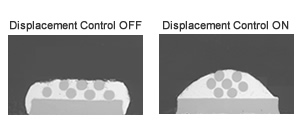

• High Precision Displacement Control
  Overtravelling amount is controlled by feedback of displacement amount in 1μm resolution, and uniform melting amount can be realized
• Wide Variety of Monitoring Functions
  (Temperature, Displacement)
• Digital Temperature Control
  High speed and highly accurate temperature control is realized by the digital PID control method, making the unit suitable for fine wires and micro-miniature works
• Release Function
  After heating, the solder thickness between the works can be secured
• Four Stage Heating
  Various temperature profiles are realized to cope with the diversified applications
• Built-in Motor Control Function
• User Interface
  RS-232C&I/O is standard equipped making the unit easy to interface with the external equipment such as the case of incorporating in an automated system
