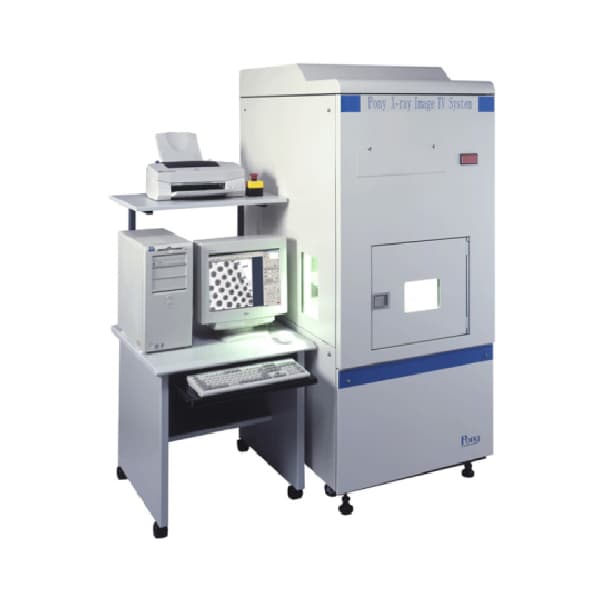

PONY ME4100-VC / MV3100-VC Máy đo Xray

Specifications

	ME4100-VC	MV3100-VC
X-ray Generator	Max. Tube Voltage Max. Tube Current	100kV / 0.25mA
Max. Output	10W
Warm Up	Automatic
X-ray Control	PC
X-ray Detectors （Digital Flat Panel）	# of Detectors	1 (Top)	2 (Top & Angle)
Panel Type	Imaging Intensifier	CMOS DFP
Effective Area	2-4 in. changeable	52.8 x 52.8mm
Geometric Magnification	about 84 times
Total Pixels	about 0.38M Pixels	about 1M Pixels
Output Resolution	8 bit : 256 grayscale	12 bit (Digital) : 4096 grayscale
PIA-Soft CS	PC / OS	Windows XP
Display	17 in.	19 in.
Image Processing	Filtering (Integration, Contrast Enhancement, Edge Enhancement, etc...), Histogram, LUT Operation, (B/W Inverse, Gamma Correction, etc...), Image Rotation, Zoom-In/Out, Duplicate Image, and Insert Text
Image Measurement	Void Measurement, Wire Sweep Rate, Length Meas., Brightness Meas., 3D Luminance Profile
Sample Scanner	Scanner Control	Automatic and Manual Scanning
X-Y-Z axis Stroke	300 x 300 x 680mm	300 x 230 x 680mm
Theta-Axis Turning Device	360 degrees in both directions	N/A
Shielding Box	X-ray Leakage	less than 1uSv/h
Interlock*	Equipped
Size	W790 x D1045 x H1775mm
Weight	about 750kg
Power Source		AC50/60Hz 100V 10A

This system is equipped with interlock mechanism, to protect the operator from unintended irradiation.

• Specifications above may be changed without prior notice.
• When the system is exported to foreign countries, Japanese Government may require exporting license.
• System specifications: including configuration, X-ray generator, X-ray detector, and Irradiation Box may be upgraded upon user`s request.
• PIA-Soft is a trademark of PONY INDUSTRY CO., LTD. All other products are trademarks and registered trademarks of their respective owners.
