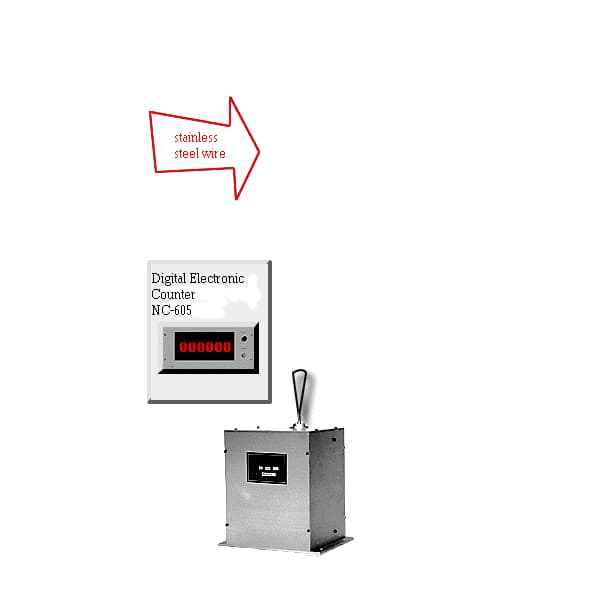

SKY NDS Cảm biến khoảng cách kỹ thuật số

DESCRIPTION

This simple instrument provides the user with a vast array of applications to maintain strict control of distances, dimensions and rates of movement. Tremendous versatility ensures easy handling of almost any measurement task.

SPECIFICATIONS

• minimum unit of measurement : 1mm, 0.01 ft.(Diffrent unit on request.)
• accuracy :
  (2mm  length measured  0.03%)
  (0.01 ft.  length measured  0.03%)
• supply voltage :
  +12DVC10%(ripple content - 1% or less)
  +24DVC10%(ripple content - 1% or less)
• output voltage :
  at power voltage +12VDC - [1] +10VDC1VDC, [0] 0.5VDC or less
  at power voltage +24VDC - [1] +20VDC1VDC, [0] 0.5VDC or less
• current consumption : 150mA or less
• Dimensions

Model	Maximum length of wire
NDS-M-5	5m
NDS-M-10	10.0m
NDS-M-25	25.0m
NDS-M-100	100.0m

Model	Maximum length of wire
NDS-F-15	15 ft.
NDS-F-30	30 ft.
NDS-F-90	90 ft.
NDS-F-300	300 ft.

Pin No.	Function
１	powe source
２	ground
３	output(+)(1)
4	ground
5	output(+)(2)
6	ground
7	ground
