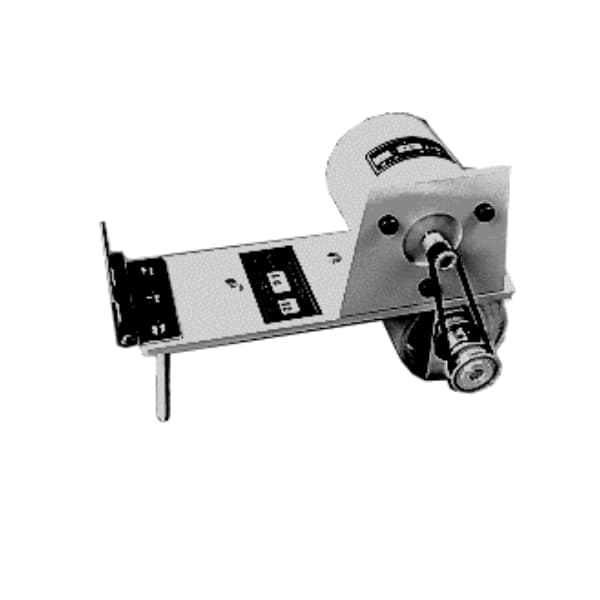

SKY NPY Đồng hồ đo sân

SPECIFICATIONS

• ouput voltage :
  at power voltage +12VDC ; [1] +10.0VDC1DVC,[0] 0.8V or less
  at power voltage +24VDC ; [1] +20.0VDC1VDC,[0] 0.8VDC or less
  at power voltage +5VDC ; [1] +4.50VDC0.5VDC,[0] 0.8VDC or less

• output wave feature : square wave
• rise time : 1 microsecond or less
• variation of output pulse duty: [1] : [0] = 1 : 1.5 - 1.5 : 1
• output resistance : 2k
• accuracy : 20% of each of the revolutions or less
• operating temperature: -10- +50
• supply voltage :
  +12DVC10%(ripple content - 1% or less)
  +24DVC10%(ripple content - 1% or less)
• current consumption:
  one-signal output - 40mA or less
  two-signals output - 80mA or less
• sink current: 50mA and under

• Dimensions

?

Model	Minimum Unit of Measurement	Maximum Measurement Speed	Power Source	Connections
NPY-1M-12	1mm	300m/min.	12VDC - 24VDC10% 40mA or less	１ signal output refer to list 1
NPY-1C-12	1cm
NPY-10C-12	10cm
NPY-1M-12W	1mm	12VDC - 24VDC10% 80mA or less	2 signals output (Quadrature phasing: 90  25) refer to list 2
NPY-1C-12W	1cm
NPY-10C-12W	10cm

?

Model	Minimum Unit of Measurement	Maximum Measurement Speed	Power Source	Connections
NPY-0.01F-12	0.01 ft.	300m(app.984 ft.)/min.	12VDC - 24VDC 10% 40mA or less	１ signal output refer to list 1
NPY-0.1F-12	0.1 ft.
NPY-0.01F-12W	0.01 ft.	12VDC - 24VDC10% 80mA or less	2 signals output (Quadrature phasing: 90  25) refer to list 2
NPY-0.1F-12W	0.1 ft.

?

List 1

Pin No.	Function
１(red)	power source
２(black)	ground
３(white)	output(+)

List 2

Pin No.	Function
１(red)	power source
２(black)	ground
３(white)	output(+)(1)
４(green)	output(+)(2)
