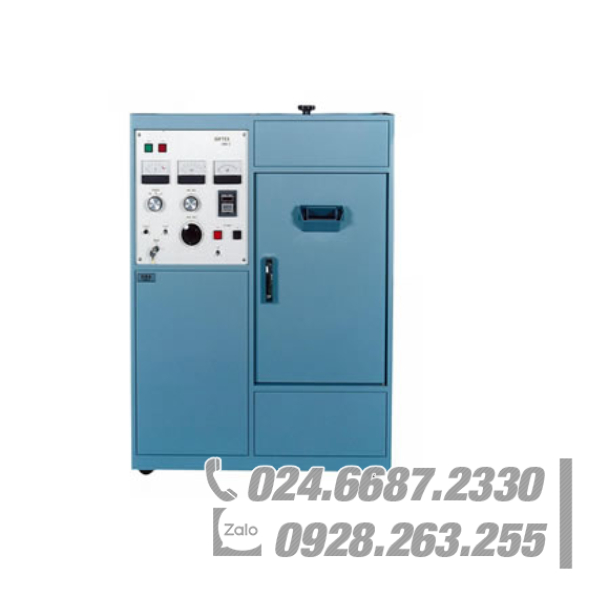

SOFTEXT C Series Thiết bị chụp ảnh tia X

SOFTEXT C Series Thiết bị chụp ảnh tia X

Features

  • For full-scale fine analysis, research, inspection
  • Worked in universities, research institutes, government offices and other specialized fields
  • CMR … It is possible to shoot super soft tissue and fine specimens. Sharp photograph of X-ray microscope image
  • CMB … Sharp photographs of various samples such as soft tissue and hard tissue
  • CSM … Almighty equipment that combines the capabilities of two of CMR, CMB into one

※Test shooting of samples is also accepted, so please feel free to contact us.

Mã: 1186-20090 Danh mục:

Main applications

Extracted organs, instant shooting of small animals, plants, resin, paper, teeth.

Bạn cần hỗ trợ về s.phẩm?

Call 024-6687-2330

Mouse

Beetle

Larva

Specification

TYPE CMR CMB-2 CSM
Input AC100V,50/60Hz
Maximum voltage 10kV 20kV 60kV 10kV/60kV
Maximum current 3mA 30mA/5mA 3mA/30mA
Sensor –
Appearance dimension W550×D350×H600mm W700×D450×H755mm W950×D500×H1,255mm W1300×D500×H1,255mm
Equipment weight About 46kg About 70kg About 240kg About 300kg

Bạn cần hỗ trợ về s.phẩm?

Call 024-6687-2330

※External dimensions and weight vary depending on specifications.
