Main applications
The state of the IC wire, the contact state of the switch, the winding state of the battery.

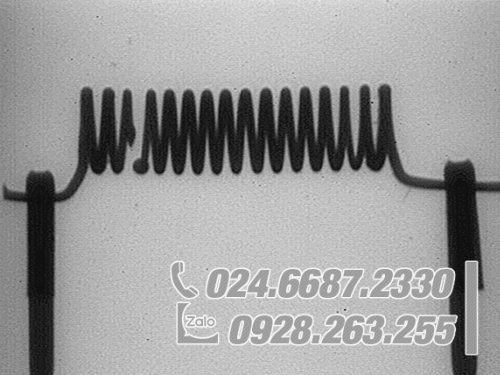

Coil
Switch
Cable
Specification
| TYPE | SVJ-2000 | SVC-2002 |
|---|---|---|
| Input | AC100V,50/60Hz | |
| Maximum voltage | 60kV | 80kV |
| Maximum current | 3mA | 2mA |
| Sensor | Soft X-ray CCD camera | |
| Table size | 120×120mm | 330×250mm |
| Appearance dimension | W450×D500×H500mm | W750×D1,050×H1,330mm |
| Equipment weight | About 70kg | About 600kg |
※External dimensions and weight vary depending on specifications.
