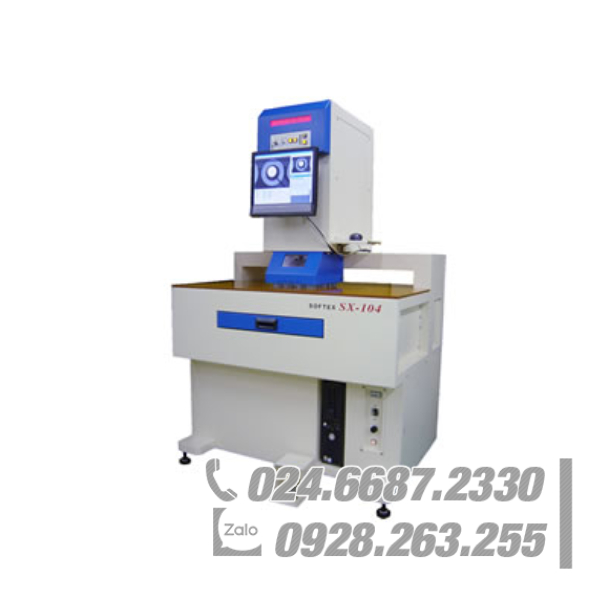

SOFTEXT SX Series Thiết bị kiểm tra TV bằng tia X

SOFTEXT SX Series Thiết bị kiểm tra TV bằng tia X

Features

  • Equipment specialized for inspection of printed circuit board
  • Easy operation just inserting the board
  • Easily measure deviation of drilling position
  • A clear image from low to high magnification by the camera vertical mechanism

※Test shooting of samples is also accepted, so please feel free to contact us.

Mã: 1186-20050 Danh mục:

Main applications

Inspection of pattern and layer misalignment of printed circuit board.

Bạn cần hỗ trợ về s.phẩm?

Call 024-6687-2330

Printed board

Printed board

Printed board

Specification

TYPE SX-103 SX-104
Input AC100V,50/60Hz
Maximum voltage 60kV
Maximum current 2ｍA 0.08mA
Sensor High sensitivity X-ray CCD camera X-ray I.I
Appearance dimension W800×D800×H1,640mm W1,150×D850×H1,810mm
Equipment weight About 350kg About 600kg
