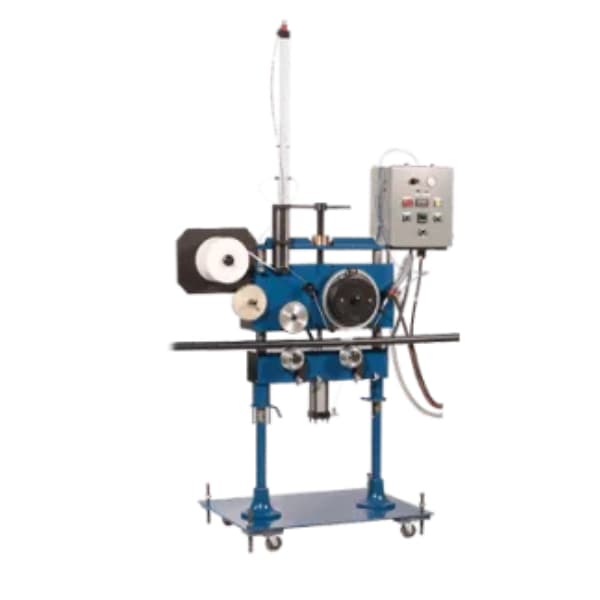

TAYMER HF100 Máy đánh dấu lá nóng cho ống

Features

• Sequential marking
• Cost efficient legend segment mounting system
• Push button, on the fly counter reset
• Single jumbo tape spool and accumulator minimizes tape breaks and spool changes
• PLC control system reduces and simplifies maintenance requirements
• Spring-loaded guide rollers allow trouble free passage of cable bulges
• Casters for easy movement in and out of the line
• Rugged, heavy duty construction for the production environment
• Optional automatic tape spool changer to avoid down time

Specifications

• Pipe Size:
  0.2″ to 5″ dia. (5.0 mm to 127 mm) (adaptable for larger sizes)
• Maximum speed:
  300 ft/min (100 m/min)
• Drum Drive:
  Direct Drive
• Type Form:
  Engraved steel, hardened
• Character Height:
  1/16″ to 5/16″
• Print Legend Length:
  140 characters metric at 7 characters per inch
• Print Colours:
  White, black, yellow, red and blue (other on request)
• Spool Length:
  • 3/8″ x 42,000′
  • 1/4″ x 72,000′
  • 10 mm x 12 805 m
  • 6 mm x 21 951 m
• Spent Tape Takeup:
  Vacuum

• Print Temperature
  P.I.D. controlled
• Sequential Marking (option):
  5 digit or 6 digit
• On The Fly Reset:
  Available option
• Print Interval:
  2 feet or 1 meter (other models available)
• Indent Print:
  Yes
• Accumulating Counter:
  Yes
• No Print Alarm:
  Yes
• Power:
  280/220/240 V, Single phase, 15A
• Air:
  80 psi
• Mounting:
  Caster base with leveling screws
• Machine Weight:
  600 lbs.
