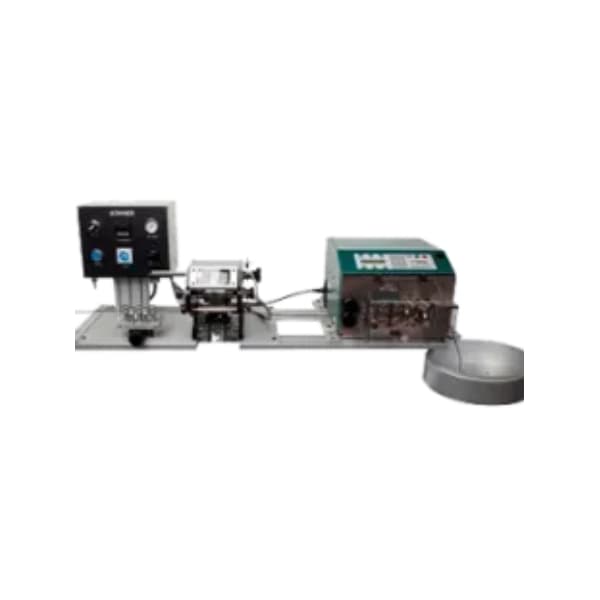

TAYMER SM1000-PMC Máy đánh dấu dây nóng nóng với Cắt đo kéo

Features

• Stepper motor with electronic control ensures accurate, easy print interval markings
• Wire can be pulled through by hand or using production machinery
• Marks identification codes in virtually any print interval
• Excellent throughput – 75 feet or 20 meters per minute with optional Automated Drive System
• Single wire guide handles a range of wire diameters reducing setup time
• Simple control and operation
• 10 flame hardened wheels, each with up to 45 characters allows for quick selection of identification codes
• Digital temperature control with feedback loop
• Optional second tape carriage provides up to spool reduces production interruptions
• Rugged, heavy duty construction for the production environment

• Maximum line speed:
  50 ft/minute
  16 m/minute
• Wire and Cable Size:
  0.040″ – 0.300″
  1 – 7.6 mm
• Number of Marking Wheels:
  up to 40, 10 standard
• Weight:
  80 lbs
  36 kg

• Dimensions:
  24″ X 33″ X 16″ (L x W x H)
  610 x 838 x 406 mm (L x W x H)
• Table mount base with mount holes
• Push button or foot pedal operation
• Temperature PID with feedback
• Power:
  110/220 VAC 50/60 Hz
• Compressed Air:
  80-100 psi
