This function automatically determines the type of element (point, line, circle).

The actual measured values for parameters and geometric deviation can be displayed on the diagram.

The limitations on the analysis range due to the angle of the stylus are addressed with the synthesis function.

This function enables the maximum workpiece point to be detected by tracing with the stylus, simplifying alignment.

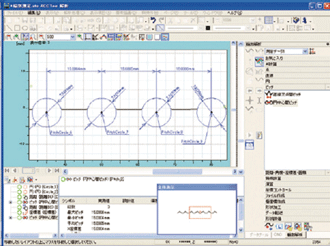

Overall workpiece analysis can be executed after completing only one pattern analysis for workpieces where certain shapes are repeated.

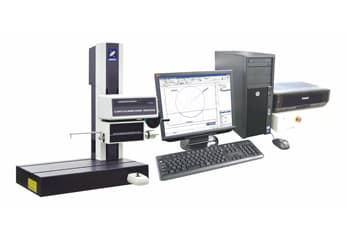

The 2600G is ideal for the evaluation of nonspherical lenses, optical fiber connectors, ball screws and other parts where high profile accuracy is required.

A wide range of evaluation functions is provided. Standard functions include a measured data (point data)/design value deviation collation function, design value generation function, best fit function and IGES/DXF conversion function to facilitate communication with CAD systems.

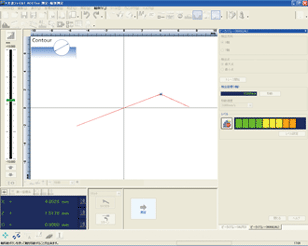

ACCTee is contour profile measurement and analysis software with enhanced operability. Provided with wizard modes for easier operation, as well as a variety of support functions such as "AI function", "self-diagnosis function" and "peak and valley detection function", ACCTee makes all measurement tasks easier and more efficient.
