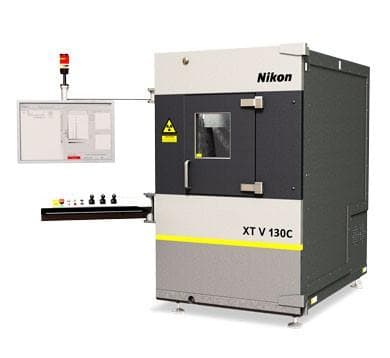

XT-V-130C Cost-effective X-ray inspection of electronic components

The XT V 130C is a highly flexible and cost-effective electronics and semiconductor inspection system. The system features a 130 kV/10 watt  Nikon Metrology manufactured source, a globally recognized open tube design with integrated generator, and a high-resolution imaging chain.

Through a series of factory and field upgrades, the end-user can configure these systems to their own needs with a higher power source, a rotating sample tray, automatic inspection software, a digital flat panel option, and the ability to add future-proof CT technology.

Benefits:

• Proprietary 30-130 kv micro-focus source with 2μm feature recognition
• True 72° manipulator tilting angle allows oblique viewing for easy inspection of internal features
• Large measurement area of 520x520 mm
• Intuitive joystick navigation drives real-time X-ray imaging
• Dual display for combined measurement and real-time analysis
• Low cost of ownership and maintenance with open-tube technology
• Safety as a design criterion
• CT and X.Tract (laminography) ready
